The shrinking footprint of electronic components, such as micro-BGA and 0201 packages, demands unprecedented precision, speed, and smooth, coordinated motion in automated assembly lines. Standard power transmission components often introduce micro-vibrations, backlash, or particulate contamination. These mechanical flaws lead directly to placement errors, reduced yield rates, and severe downtime in strictly controlled cleanroom environments. When a robotic arm misses a placement target by mere microns, the entire printed circuit board (PCB) becomes defective scrap.
Specifying the correct synchronous drive architecture is a foundational engineering decision. Balancing material properties, tooth profiles, and tensioning dynamics dictates the operational reliability and quiet operation of electronic manufacturing equipment. You must move beyond generic motion components and carefully evaluate how synchronous drives interact with delicate payloads. A properly designed system eliminates slip, dampens unwanted resonance, and translates rotary motor output into flawless linear or indexing motion.
Precision is Non-Negotiable: Synchronous drive systems eliminate slip, providing the exact rotational-to-linear motion translation required for high-speed pick-and-place robotics and PCB conveyors.
Speed and Torque Optimization: Pulley ratios provide a highly reliable, cost-effective method for modifying speed and torque without requiring complex, multi-motor electronic drives.
Material Dictates Environment Suitability: The choice between polyurethane and rubber directly impacts particulate generation, chemical resistance, and electrostatic discharge (ESD) safety.
Profile Matching Prevents Backlash: Pairing the correct belt tooth profile with precision-machined pulleys minimizes backlash and ensures repeatable indexing.
Proactive Mitigation Reduces Downtime: Proper tensioning and alignment protocols at the design stage prevent premature tooth shear and belt walk, maximizing system uptime.
Motion control in electronic assembly relies on strict baseline requirements. Systems must achieve zero slip, high repeatability, low vibration, quiet operation, and minimal maintenance. Synchronous drives fulfill these criteria by utilizing positive engagement rather than relying on friction. We see standard friction belts fail constantly in high-speed indexing because they stretch and slip under rapid acceleration.
Friction-based drives, such as standard V-belts, inherently suffer from creep and slippage under varying load conditions. In contrast, a timing belt utilizes molded teeth that mesh perfectly with corresponding grooves on a pulley. This positive engagement locks the rotational position of the driving motor to the driven load. You get an exact mechanical linkage that does not drift over time.
For multi-axis robotic arms, solder paste printers, and automated optical inspection (AOI) machines, this synchronous motion is mandatory. When a stepper or servo motor executes a micro-step, the drive translates that exact angular displacement into precise linear travel. This guarantees that a placement head arrives at the exact X-Y coordinate repeatedly. We routinely design systems that maintain tolerances of +/- 0.05mm across millions of operational cycles simply by selecting the right pitch and tension member.
Engineers frequently face the choice between using mechanical linkages driven by a single motor or deploying individual direct-drive electronic servos for every moving axis. While electronic synchronization offers high programming flexibility, mechanical synchronization provides absolute, fail-safe coordination. It removes the risk of network latency between drives.
In complex tooling environments, multiple moving heads operate in close proximity. If a power failure or software glitch occurs, individual servos may lose their positional data. This results in catastrophic mechanical collisions that destroy expensive tooling. A mechanical synchronous drive physically links these components. If the system stops abruptly, all connected axes decelerate together. You preserve the physical integrity of the machine and the delicate electronic payloads.
Varying pulley diameters allows engineers to efficiently step up or step down speed and torque from a single drive motor. By altering the tooth count ratio between the drive pulley and the driven pulley, the system acts as a highly efficient mechanical gearbox. You avoid the weight, cost, and lubrication requirements of an actual enclosed gear reducer.
Calculating precise drive ratios is essential for optimizing the acceleration and deceleration profiles of delicate electronic components. Rapid, jerky movements easily dislodge un-soldered components from wet solder paste. An optimized pulley ratio allows the motor to operate in its most efficient RPM range while delivering smooth, controlled torque to the conveyor or actuator. We often use a 3:1 or 5:1 reduction ratio to give a smaller NEMA 23 stepper motor the torque authority needed to move a heavy gantry smoothly.
Drive-induced vibration poses a severe threat to delicate electronic components and wet solder joints. Resonance traveling through the machine frame causes component shifting before the reflow oven stage. Synchronous drives, particularly those with engineered tension members, absorb and dampen these micro-vibrations much better than rigid ball screws or rack-and-pinion systems.
Optimized synchronous drives operate quietly, improving the ergonomic environment for factory floor operators. Cleanroom compliance is another strict requirement. Motion components must be evaluated for outgassing, abrasion resistance, and dust generation. Selecting the right materials prevents microscopic debris from contaminating exposed semiconductor dies or optical sensors. If you use a standard industrial drive in an ISO Class 5 cleanroom, the resulting particulate shedding will ruin your yield rates within days.
The operational environment dictates the material composition of the drive components. Engineers must compare primary materials based on load capacities, chemical exposure, and cleanroom ratings. You cannot use a one-size-fits-all approach when dealing with wave soldering heat, aggressive fluxes, and static-sensitive microchips.
A Rubber Timing Belt typically utilizes a neoprene compound reinforced with fiberglass tension cords. These drives offer excellent flexibility and superior noise reduction. They are ideal for high-speed applications where acoustics are a primary concern. The fiberglass cords provide high tensile strength while resisting elongation under continuous loads.
However, rubber compounds have distinct limitations in electronic manufacturing. They are susceptible to degradation from certain industrial chemicals, synthetic lubricants, and cleaning solvents. Rubber also exhibits higher particulate shedding as the teeth wear against the pulley. This shedding disqualifies it from strict ISO-rated cleanrooms. Additionally, temperature constraints limit their use in close proximity to wave soldering machines or reflow ovens, where ambient heat easily exceeds the safe operating range of standard neoprene.

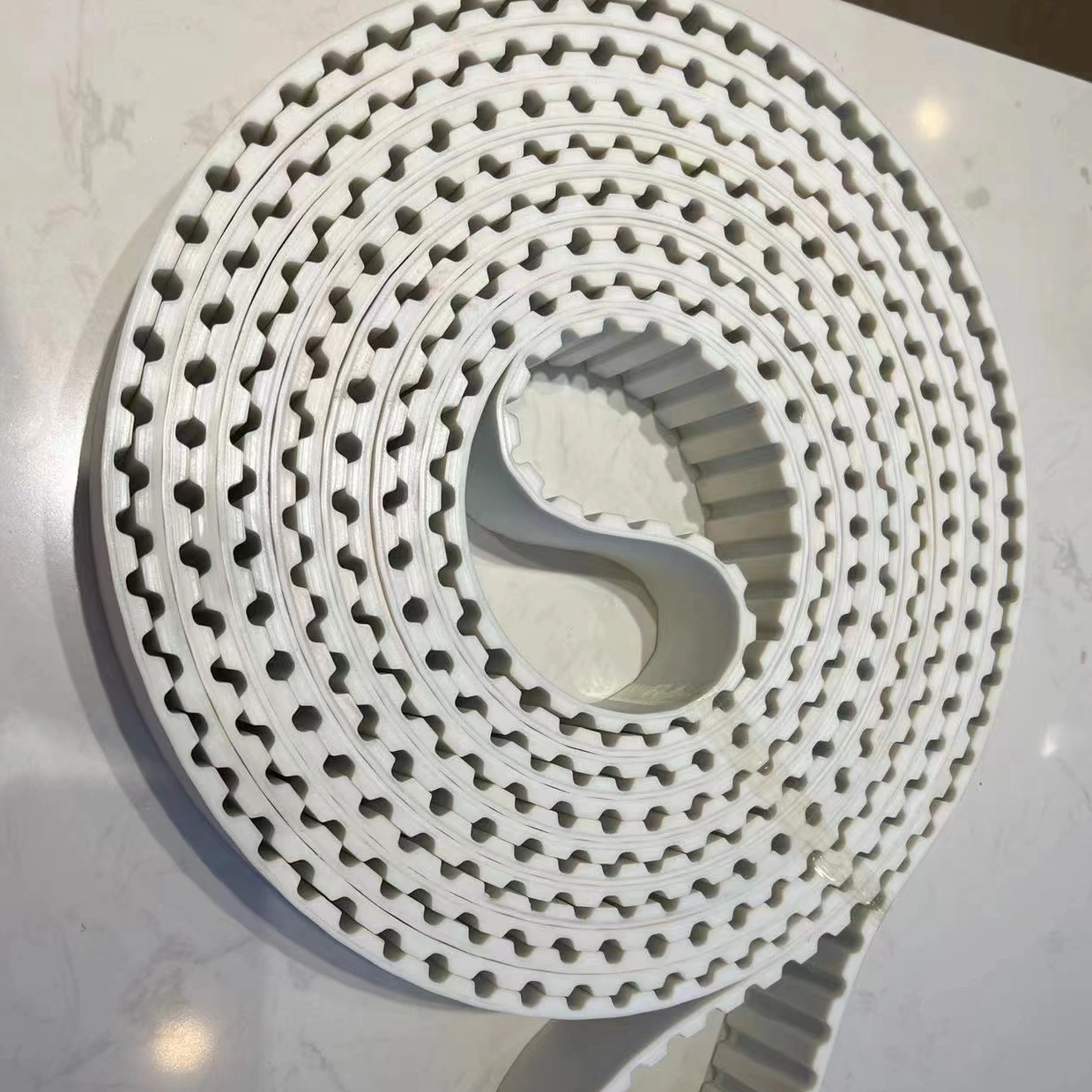

Polyurethane offers significant structural advantages for precision automation. A PU Timing Belt is typically manufactured with steel or Kevlar tension members. This combination creates a high-torque, exceptionally low-stretch drive system ideal for heavy indexing loads and rapid reversing applications.
Polyurethane excels in cleanroom environments. It possesses superior abrasion resistance, resulting in drastically lower particulate generation compared to neoprene. PU is also highly resistant to the oils, fluxes, and solvents commonly used in PCB manufacturing. The stiffness of the steel or Kevlar cords ensures that the drive maintains exact pitch under heavy acceleration, preventing positioning errors. We specify 92 Shore A polyurethane for almost all automated optical inspection (AOI) camera gantries because it simply does not stretch.
Standard profiles often require custom modifications to handle specific electronic assembly tasks. A Special/Multi-purpose Timing Belt can be engineered with custom backings, profiles, and machining to solve unique material handling challenges.
Vacuum Belts: Perforated drives allow vacuum systems to pull air through the belt itself. This holds delicate silicon wafers or lightweight PCBs securely against the surface during high-speed transit without mechanical clamping.
Cleated Belts: Custom welded profiles (cleats) act as physical stops or pushers. They provide precise component indexing along a conveyor, ensuring every PCB stops at the exact millimeter required for robotic assembly.
ESD-Safe Coatings: Anti-static backing materials are mandatory for preventing electrostatic discharge. These conductive properties safely dissipate static buildup before it can arc and destroy sensitive integrated circuits.
High-Temperature Backings: Silicone or Teflon overlays protect the base polyurethane from radiant heat when conveying components directly out of a reflow oven.
Material Type | Tension Member | Cleanroom Suitability | Chemical Resistance | Best Fit Application |
|---|---|---|---|---|
Neoprene Rubber | Fiberglass | Low (High Shedding) | Moderate | Standard conveyors, non-cleanroom packaging, high-speed low-torque drives. |
Polyurethane (PU) | Steel or Kevlar | High (Low Dust) | Excellent | Cleanrooms, precise robotic indexing, AOI machines, heavy gantry systems. |
Special/Multi-purpose | Varies (Custom) | Very High (If specified) | Varies by coating | Wafer handling, static-sensitive component transport, vacuum conveyors. |
The pulley design directly influences the performance, accuracy, and longevity of the entire synchronous drive. A premium tension member will fail prematurely if paired with an improperly specified pulley. You must engineer the metal components with the same rigor as the elastomer components.
Tooth geometry determines how power transfers from the pulley to the drive. Trapezoidal profiles (such as T and AT series) have straight-sided teeth. While effective for general conveying, the sharp corners concentrate stress at the tooth root. This stress concentration leads to faster wear under heavy loads and introduces slight backlash during reversing operations.
Curvilinear profiles (such as HTD and GT series) utilize a rounded tooth shape. This geometry distributes stress much more evenly across the tooth surface. Curvilinear profiles enable higher torque transmission and significantly reduce the polygon effect (chordal action) for smoother operation. Most importantly, curvilinear teeth fit tighter into the pulley grooves, minimizing backlash. This tight fit is mandatory in reversing servo applications where any mechanical play translates directly to positioning errors at the tool head.
The mass of the pulley affects the responsiveness of the motion system. Aluminum pulleys offer low rotational inertia. This makes them ideal for rapid start-and-stop motion profiles common in pick-and-place robotics. Lower inertia reduces the strain on the servo motor during aggressive acceleration, allowing for faster cycle times without overheating the motor coils.
Conversely, steel or stainless steel pulleys provide maximum durability and corrosion resistance. They are better suited for continuous, heavy-duty conveyors or environments exposed to harsh washdowns. Regardless of the material, precision hobbing is necessary to ensure exact tooth pitch. Surface treatments, such as hard anodizing for aluminum (typically 50 microns thick), extend system life by preventing the abrasive tension cords from wearing down the pulley teeth over time.
Securing the pulley to the drive shaft requires strict concentricity. Traditional set screws push the pulley off-center, inducing runout and vibration. At 2000 RPM, a few thousandths of an inch of runout creates a vibration harmonic that ruins camera inspection accuracy. Taper-lock bushings or keyless locking devices provide 360-degree clamping force. They ensure perfect concentricity and eliminate shaft damage caused by set screw gouging.
Flanges are mandatory on specific pulleys to prevent tracking issues. In a standard two-pulley system, at least one pulley must be flanged on both sides to keep the drive centered. For vertical shaft orientations, gravity forces the material downward. This requires robust bottom flanges on all pulleys to prevent derailment during operation.
Balancing component selection against long-term operational efficiency dictates the overall success of the manufacturing line. High-quality mechanical components directly influence facility output. You cannot afford to cut corners on motion control when factory throughput is on the line.
Specifying premium motion components heavily influences machine uptime. A sudden mechanical failure halts the entire assembly line, requiring immediate maintenance labor and causing severe production bottlenecks. High-grade polyurethane materials with steel tension members resist elongation and tooth shear, drastically extending the maintenance interval. Furthermore, higher placement accuracy achieved through zero-backlash profiles reduces scrap rates. This ensures more PCBs pass final inspection and reduces the labor spent on manual rework.
Centralized motor-and-belt systems offer distinct mechanical reliability compared to deploying multiple synchronized electronic servo motors. A single robust motor driving a well-engineered mechanical linkage requires less complex programming and fewer electronic failure points. This mechanical simplicity ensures that all linked stages of a conveyor or transfer mechanism remain perfectly timed. You do not have to rely on continuous network communication between multiple drives, which can suffer from packet loss or interference in noisy factory environments.
The low-friction, no-slip nature of optimized synchronous drives reduces the continuous load on servo motors. Because the teeth engage positively, the system does not require high static tension to prevent slipping, unlike friction V-belts. Lower radial loads on motor bearings reduce friction and heat generation. Across large-scale automation facilities running hundreds of conveyors, this mechanical efficiency translates directly to lower overall energy consumption and longer bearing life for the drive motors.
Even the most advanced motion components will fail if installed incorrectly. Addressing common failure modes during the assembly phase prevents chronic operational issues. We see excellent engineering designs ruined by poor factory floor execution.
Misalignment is the primary cause of premature failure. Parallel misalignment occurs when the driving and driven pulleys are not in the same plane. Angular misalignment happens when the shafts are not perfectly parallel. Both conditions cause the material to track hard against the pulley flanges, a condition known as belt walk.
This constant rubbing generates excessive particulate dust, shreds the edges, and eventually forces the material to climb over the flange and snap. Engineers must enforce strict installation tolerances. Utilizing laser alignment tools ensures shafts are parallel and pulleys are perfectly coplanar. You place a laser emitter on the drive pulley and a magnetic target on the driven pulley to guarantee even load distribution across the entire width.
Improper tensioning destroys synchronous drives. Over-tensioning places extreme radial loads on motor and shaft bearings, leading to rapid bearing failure or snapping the tension cords. Under-tensioning allows the material to ride up out of the pulley grooves during high-torque acceleration. This causes ratcheting, where the drive jumps teeth, instantly shearing the molded teeth off the backing.
Installation protocols must include sonic tensioning meters. You pluck the span like a guitar string, and a microphone picks up the vibration frequency in Hertz (Hz). You compare this Hz reading against the calculated ideal frequency derived from the mass, span length, and desired static tension. This eliminates the guesswork of manual deflection tests and ensures perfect installation tension every time.
Automated assembly lines often run in continuous 24/7 operation cycles. This relentless duty cycle generates internal heat within the elastomer. Ambient temperature fluctuations in the facility can also cause thermal expansion or contraction of the aluminum machine frames, which alters the static tension.
Exposure to aggressive flux, conformal coating overspray, or harsh cleaning agents degrades standard elastomers rapidly. Mitigating these risks requires selecting highly resistant polyurethane compounds. You must also install protective guarding to shield drives from chemical exposure and implement routine visual inspections to catch micro-cracking before catastrophic failure occurs.
Audit your current motion control systems to identify friction-based drives or degraded components causing micro-vibrations and particulate contamination.
Consult with application engineers to perform precise dynamic load and ratio calculations before selecting tooth profiles and tension members.
Implement strict laser alignment and sonic tensioning protocols during the installation of all new drive components to prevent premature wear.
Request CAD models and physical material samples of specialized polyurethane or ESD-safe materials to prototype their integration into your cleanroom environment.
A: Rubber compounds shed microscopic particulates as they wear against pulleys, which contaminates cleanrooms and sensitive electronics. PU (polyurethane) offers superior abrasion resistance, generating significantly less dust. PU is also highly resistant to the harsh chemicals, fluxes, and solvents frequently used in semiconductor and PCB manufacturing environments.
A: By pairing pulleys of different diameters, the system acts as a mechanical gearbox. A smaller drive pulley turning a larger driven pulley reduces rotational speed while proportionally increasing torque. This allows engineers to optimize the motor's RPM range for delicate payload acceleration without buying expensive gear reducers.
A: Mechanical linkages provide absolute, fail-safe synchronization. If a power loss or software error occurs, mechanically linked axes decelerate together, preventing moving tooling heads from colliding. It also reduces programming complexity and minimizes the number of electronic failure points in the system.
A: Prevent backlash by selecting curvilinear tooth profiles (like HTD or GT) instead of standard trapezoidal profiles. Curvilinear teeth mesh tighter with the pulley grooves. Ensure proper sonic tensioning and use precision-machined pulleys with keyless locking devices to eliminate play during rapid start, stop, and reversing motions.
A: Yes. Special and multi-purpose configurations can be manufactured with conductive anti-static backings and coatings. These ESD-safe modifications safely dissipate electrostatic buildup generated by the friction of the moving drive, protecting sensitive integrated circuits and silicon wafers from static shock damage.
A: Tooth shear is primarily caused by under-tensioning. If the installation is too loose, rapid acceleration or heavy torque loads cause the material to ride up out of the pulley grooves. The metal pulley teeth then grind against the elastomer teeth, shearing them off entirely in a process known as ratcheting.
