High-speed folding, gluing, and printing operations rely entirely on micro-second precision. A fraction of a millimeter in belt slippage compromises an entire production run. Premature belt wear, inconsistent grip, and catastrophic splice failures lead to jammed corrugated boxes, misaligned cartons, and severe unplanned downtime. Moving beyond basic dimensional matching requires a technical evaluation of material composition, friction coefficients, and tensioning requirements. You must select a flat belt engineered for specific substrate and speed demands. This guide breaks down how to evaluate belt technologies, optimize tensioning architectures, and mitigate common implementation risks. We detail how to match cover materials to substrates and execute reliable splice-on-site methods to keep packaging lines running at peak performance.
Substrate Matching: The choice between rubber, fabric, or synthetic composite covers must align with the specific friction and abrasion requirements of the handled material (e.g., heavy corrugated board vs. high-gloss carton).
Downtime Mitigation: Prioritize belts compatible with splice-on-site methods (such as thermoplastic joining) and the associated tooling ecosystems to drastically reduce maintenance windows during replacements.
Tensioning Architecture: Evaluate an Elastic Flat Belt for applications requiring constant tension without mechanical take-ups, thereby reducing machine footprint and maintenance overhead.
Machine builders separate belts into two distinct functional categories based on mechanical demands. Tangential drives transmit power from the main motor to various machine sections. These belts require high tensile strength, minimal elongation, and the ability to handle high torque loads without slipping on steel drive pulleys. Substrate conveying belts actively grip the paper or cardboard. They fold, twist, and transport the material between parallel sections. Conveying belts demand specific surface friction properties to handle the substrate without causing damage. Mixing these applications leads to rapid component failure. Power transmission belts cannot handle the abrasive nature of corrugated board or the heavy paper dust generated during the die-cutting process. Conveying belts lack the rigid tensile core needed to drive heavy machine shafts and will stretch uncontrollably if subjected to main drive motor torque. Understanding this separation dictates the entire specification process for replacement parts.
A standard folder-gluer utilizes different belts across multiple operational zones. Each zone presents unique mechanical stresses.
Feeder Section: This zone pulls individual blanks from a heavy, static stack. Belts here require aggressive friction to overcome static inertia. They endure constant abrasion from the bottom of the stack.
Pre-Breaker Section: Belts fold the carton flaps back and forth to pre-crease the material. They endure severe twisting, high-speed directional changes, and constant edge wear against guide rails.
Folding Section: This area completes the final carton shape, often handling complex crash-lock bottoms. Belts route over small nosebars and demand extreme flexibility to prevent internal delamination.
Delivery and Compression Section: The trombone and compression zones apply heavy pressure to seal the glued joints. Belts in this zone need smooth, non-marking surfaces to protect printed graphics while maintaining enough grip to shingle the cartons evenly.
Performance baselines dictate the success of any installation. Modern folder-gluers operate at sustained speeds exceeding 400 meters per minute. Belts must maintain exact folding precision at these extreme velocities. A deviation of just one millimeter causes rejected cartons and jams the downstream packer. Zero-marking substrate handling is an absolute requirement for high-gloss packaging, cosmetics boxes, and pharmaceutical cartons. Drop-in compatibility with industry-standard OEM architectures ensures seamless upgrades. Maintenance teams require belts that fit existing pulley configurations without extensive machine modifications. You must match the belt thickness, coefficient of friction, and flexibility to the original equipment specifications to maintain warranty compliance and ensure the machine's electronic tracking sensors function correctly.

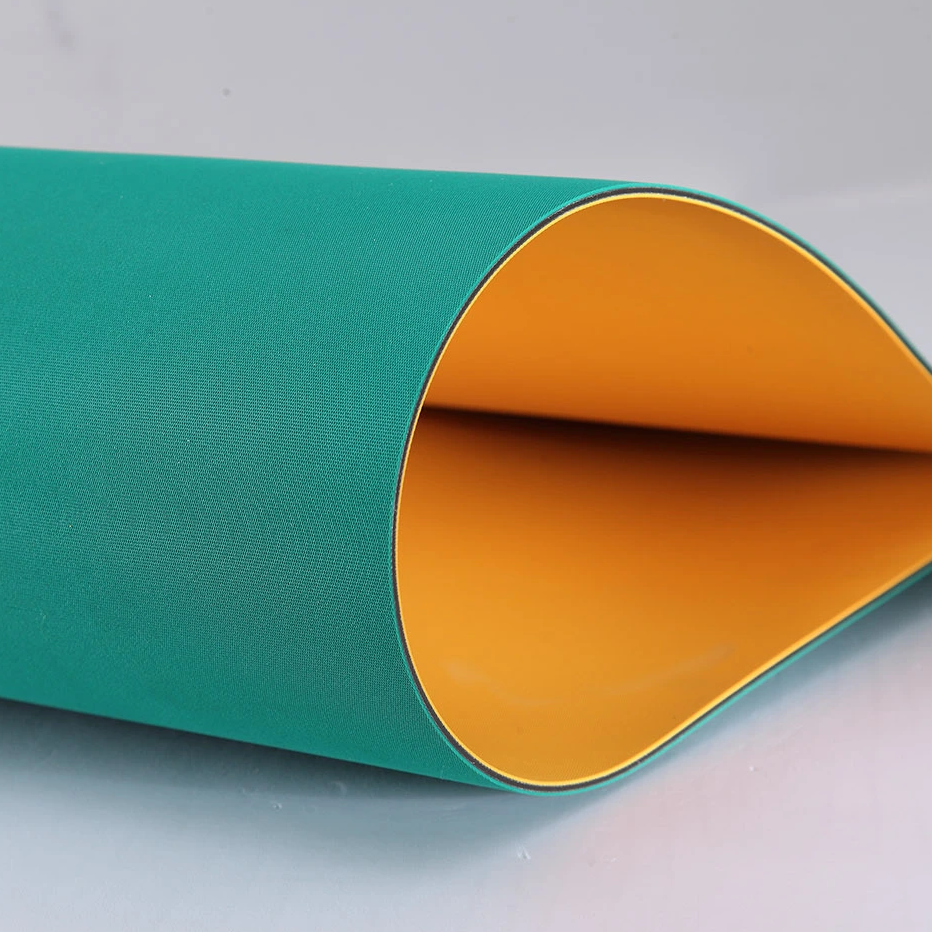

Manufacturers build traditional belts using multiple engineered layers to separate the traction function from the gripping function. Nitrile rubber (NBR) covers provide superior elasticity and aggressive grip. They handle heavy, abrasive corrugated boards with ease and resist degradation from common machine oils. Polyurethane (PU) covers offer unmatched abrasion resistance and a smoother finish. PU works perfectly for high-speed runs of smooth, printed cartons where marking is a primary concern. The traction layer prevents elongation under heavy loads. Engineers typically use polyamide or aramid fabrics for this core. Polyamide absorbs shock loads during sudden machine starts, offering a slight, controlled stretch. Aramid provides zero stretch for applications requiring absolute synchronization across parallel sections, ensuring the left and right sides of the carton advance at the exact same micro-speed.
Traction Layer Material | Tensile Strength | Shock Absorption | Primary Application |
|---|---|---|---|
Polyamide (Nylon) | High | Excellent | General folding, sections with frequent start/stop cycles |
Aramid (Kevlar) | Very High | Poor | High-precision synchronization, heavy corrugated board |
Polyester | Medium | Good | Lightweight cartons, delivery sections |
Self-tensioning properties define this specific category. An Elastic Flat Belt eliminates the need for mechanical take-up systems. You install these belts with a predetermined initial stretch, usually between 4% and 8% depending on the manufacturer's specifications. They maintain constant tension throughout their operational life. This simplifies machine design in feeder and delivery sections. It reduces the overall machine footprint significantly by removing bulky tensioning brackets and sliding motor bases. Elastic belts absorb shock loads effectively. They protect sensitive bearings and shafts from sudden torque spikes when a heavy stack of blanks drops into the feeder. Maintenance teams spend less time adjusting tension, allowing them to focus on preventative maintenance elsewhere on the line.

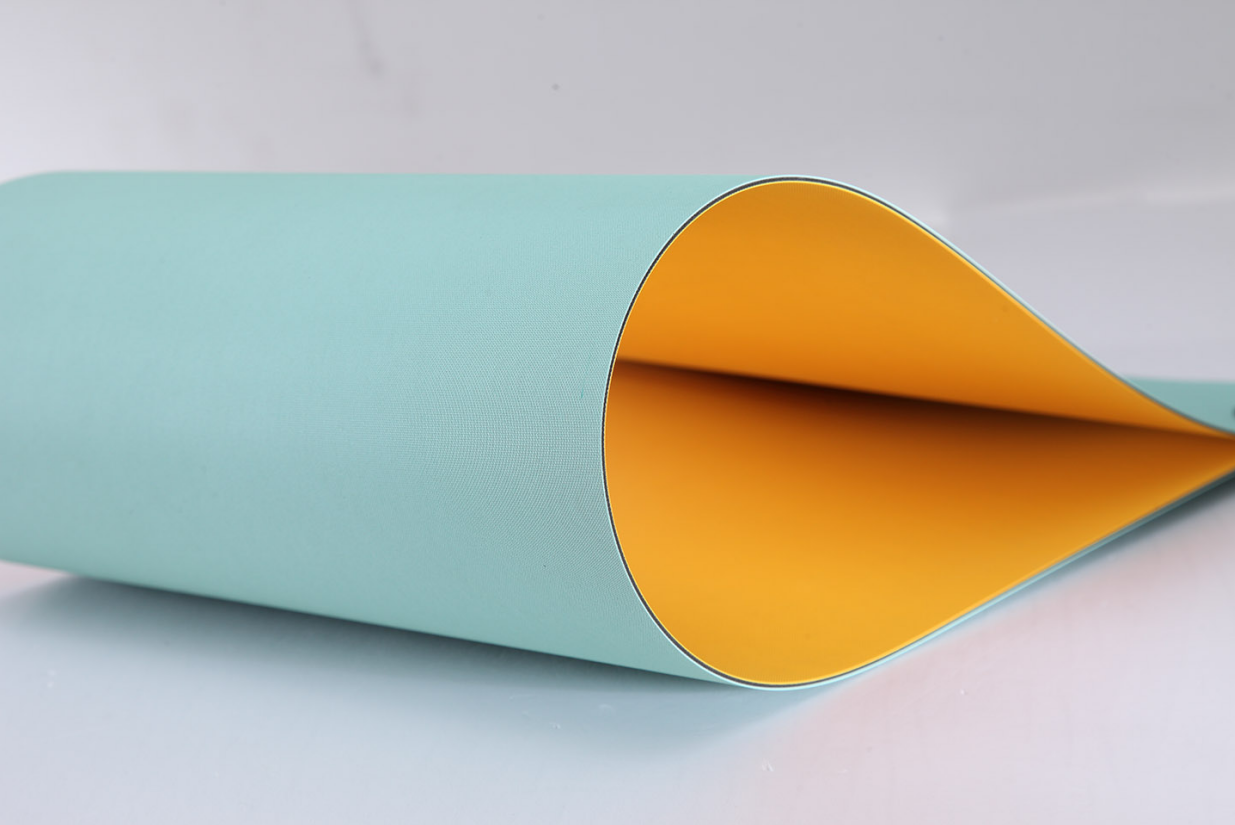

Power transmission requires specialized construction methods to handle continuous torque. A TC Belt utilizes a polyester/rubber or polyamide/rubber composition. These belts deliver high-efficiency power transfer across multiple machine sections, driving the main shafts that power the individual conveying belts. They maintain strict dimensional stability under continuous heavy loads. TC belts excel in multi-pulley and serpentine drive configurations. They flex easily over alternating pulley faces without delaminating, handling both forward and reverse bending. The rubber covers provide excellent grip on steel or cast-iron drive pulleys. This prevents power loss through micro-slippage during high-speed runs, ensuring the motor's energy transfers directly into machine movement rather than generating destructive heat.
Cover texture dictates substrate control and precision. You must select textures based on the handled material. Smooth covers work best for delicate, high-gloss cartons. They prevent scuffing and ink transfer during transport. Rough or grooved covers provide aggressive grip. They handle heavy corrugated boards covered in abrasive paper dust. You must balance grip against the risk of marking. Too much friction damages printed surfaces and causes the belt to grab the carton aggressively, throwing it out of alignment. Too little friction causes blanks to slip, resulting in skewed folds and machine jams.
Cover Texture | Primary Material | Ideal Substrate | Key Advantage |
|---|---|---|---|
Smooth | Polyurethane (PU) | High-gloss cartons, printed paper | Zero-marking, easy to clean |
Rough / Fabric | Polyamide / NBR | Standard folding cartons | Consistent grip, handles light dust |
Grooved / Patterned | Nitrile Rubber (NBR) | Heavy corrugated board | Aggressive traction, channels away heavy dust |
Splice failures cause catastrophic production downtime. Thermoplastic splicing offers seamless, highly durable joints that match the flexibility of the base belt. Skived or finger joints distribute stress evenly across the splice area, preventing the joint from acting as a rigid hinge over small pulleys. Mechanical fasteners like Alligator lacing provide quick fixes but damage delicate substrates and create a loud clicking noise as they pass over steel rollers. Executing flawless thermoplastic joints requires an on-site tooling ecosystem. Maintenance teams need precision belt slitters to cut exact widths and gluing guides to ensure perfect alignment. Portable heating presses cure the splice at exact temperatures, usually requiring a water-cooling cycle to set the thermoplastic instantly. Splice-on-site capabilities drastically reduce maintenance windows. You can replace belts by threading them through the machine frame and splicing them in place, completely avoiding the need to remove heavy machine shafts or dismantle bearing housings.
Tight folding sections utilize small-diameter rollers and stationary nosebars to execute sharp, precise folds. Belts must navigate these tight radii at high speeds without generating excessive internal heat. Bending fatigue resistance becomes a critical evaluation metric. Stiff belts crack and delaminate when forced over small pulleys, shedding rubber debris onto the cartons. Highly flexible belts navigate these paths easily but may lack the load capacity to pull heavy corrugated blanks. You must match the belt's minimum pulley diameter specification to your machine's smallest roller. If a belt specifies a 30mm minimum diameter, running it over a 15mm nosebar will destroy the traction layer within hours. This prevents premature structural failure and keeps the line running at maximum velocity.
Continuous high-speed operation generates immense centrifugal forces. These forces attempt to throw the belt off the pulleys, especially on long, unsupported spans in the delivery section. The traction layer must manage these forces to prevent elongation and maintain tension. Lateral drift causes the belt edges to rub against machine frames and guide rails. This leads to rapid edge fraying, structural degradation, and the release of synthetic fibers into the gluing pots. Dimensionally stable belts track perfectly straight. They maintain their exact width and length regardless of operational speed fluctuations. This stability ensures the gap between parallel belts remains constant, preventing the cartons from twisting or skewing as they move through the pre-breaker and folding zones.
Highly engineered synthetic belts require a larger initial investment of procurement capital and installation time. You must weigh this against the reduction in replacement frequency. Standard rubber belts wear out quickly on abrasive corrugated lines, losing their grip and requiring replacement every few months. Premium polyurethane covers last significantly longer under the same conditions, resisting the abrasive action of paper dust and die-cut edges. Extended operational lifespan reduces overall maintenance interventions. Fewer belt changes mean more continuous production hours. You achieve higher throughput by minimizing planned downtime schedules. A belt that costs twice as much but lasts four times as long provides a clear operational advantage on a high-volume packaging line.
Standard belts stretch over time due to continuous load and the natural relaxation of the traction layer. They require frequent manual tensioning adjustments to prevent slippage. This maintenance overhead consumes valuable technician hours and requires stopping the machine. Upgrading to an elastic design provides a fit-and-forget solution. The belt maintains its own tension dynamically, expanding and contracting slightly to accommodate load variations. You eliminate the need for mechanical take-up adjustments. The line runs continuously without tension-related stoppages. This is particularly valuable in the feeder section, where access to tensioning bolts is often restricted by heavy safety guards and stack loaders.
Power transmission involves energy loss over small pulleys. Stiffer belts offer higher load capacities for heavy drives, preventing elongation under massive torque. However, they consume more electrical energy to flex around the pulleys. The motor works harder just to bend the belt, generating internal heat and increasing amperage draw. Highly flexible belts reduce power consumption significantly. They bend easily and generate less internal heat, allowing the motor to run cooler and more efficiently. You must evaluate this trade-off carefully. Sacrificing load-bearing limits for energy efficiency can cause belt snapping under heavy loads. You must select a belt that offers the exact flexibility required for the pulley diameters while maintaining enough tensile strength to handle the maximum expected substrate weight.
Lateral drift represents a major operational risk. It causes severe edge wear, substrate misalignment, and eventual belt snapping. You mitigate this by implementing proper pulley crowning. Crowning naturally guides the Flat Belt to the center of the pulley, utilizing the belt's tendency to climb to the highest point of the roller. Ensure parallel shaft alignment across all machine sections using precision leveling tools. Utilize active tracking guides or flanged pulleys only where absolutely necessary, as flanges can damage belt edges if alignment is poor. Routine laser alignment checks prevent gradual tracking drift over time, ensuring the machine frame remains square after heavy production runs.
Tensioning errors destroy belts and machine components rapidly. Over-tensioning leads to premature bearing failure, shaft deflection, and excessive wear on the motor journals. Under-tensioning causes slippage, heat buildup, and rapid cover wear as the pulley spins faster than the belt. You mitigate this by utilizing sonic tension meters. These devices measure the exact vibration frequency of the installed belt, providing a highly accurate tension reading. Adhere strictly to the manufacturer's elongation-at-fit specifications. Never guess the tension based on physical feel or the thumb depression method. Document the exact tension frequency for every belt on the machine to standardize maintenance procedures across different shifts.
Folder-gluers operate in harsh, dusty environments. Paper dust accumulation degrades the belt's friction coefficient, turning a high-grip surface into a slick hazard. Adhesive buildup from cold glue extrusion systems or hot melt pots causes erratic substrate handling and jams. Ink transfer from freshly printed cartons ruins subsequent runs. You mitigate these risks by establishing routine cleaning protocols. Use only manufacturer-approved solvents to prevent rubber degradation; harsh chemicals will harden NBR covers and cause premature cracking. Specify belts with specialized non-stick top covers for sections near the glue pots. Easily cleanable surfaces reduce daily maintenance time and prevent cross-contamination between different packaging jobs.
The optimal flat belt is not a simple commodity. It is a highly engineered component. Its material, tensioning profile, and splicing method must strictly align with machine parameters. You must match these features to machine speed, pulley diameters, and substrate characteristics. Audit your current failure modes carefully. Identify edge wear, splice separation, or slippage issues to determine the root cause of mechanical downtime.
Document exact pulley dimensions, minimum nosebar radii, and operating speeds for every machine section.
Request material samples for friction testing against your specific paper and cardboard substrates to verify grip and marking resistance.
Audit your current splicing tools to ensure compatibility with modern thermoplastic joining methods and verify your heating press reaches the required curing temperatures.
Consult with a belting engineer for a comprehensive line audit to identify tracking flaws, shaft deflections, and tensioning inaccuracies.
A: Lifespan depends heavily on operational speed, substrate abrasiveness, and maintenance practices. High-quality synthetic belts running on smooth cartons can last over a year. Belts handling heavy, abrasive corrugated boards may require replacement every three to six months. Proper tensioning, accurate shaft alignment, and routine cleaning protocols significantly extend operational life and prevent premature cover degradation.
A: Maintenance teams use splice-on-site thermoplastic methods. They cut the belt to length, thread it through the machine frame, and prepare the ends using a precision slitter. The ends are joined using a finger or skived configuration. A portable heating press melts and cures the thermoplastic materials together directly on the machine, eliminating the need to dismantle bearing housings.
A: Successful on-site fabrication requires a specific tooling ecosystem. You need a precision belt slitter to cut exact widths and ensure straight edges. A finger punch or skiving machine prepares the joint ends for maximum surface area contact. A gluing guide ensures perfect alignment during the melt phase. Finally, a portable heating press with water cooling cures the splice rapidly.
A: Specify an elastic belt when your machine design lacks mechanical take-up tensioners. They are ideal for feeder and delivery sections requiring constant, dynamic tension. Elastic belts absorb shock loads efficiently and simplify machine architecture. They are perfect for fixed-center distance drives where manual tension adjustments are impossible or highly restrictive for maintenance personnel.
A: Yes, high-quality aftermarket belts often match or exceed OEM specifications. You must ensure the aftermarket belt shares the exact thickness, minimum pulley diameter tolerance, and coefficient of friction as the original. Partnering with a reputable belting manufacturer ensures the replacement materials integrate seamlessly with the machine's existing tracking sensors and drive pulleys.
A: Slippage occurs due to several mechanical and environmental factors. Under-tensioning is the primary cause, failing to provide enough grip on the drive pulley. Loss of surface friction from paper dust accumulation or adhesive contamination also causes slippage. Additionally, using a belt with a smooth cover on a heavy corrugated substrate fails to provide the necessary mechanical traction.
A: A TC belt features a polyester or polyamide traction layer combined with durable rubber covers. It is a tangential drive belt designed strictly for power transmission. You use it to drive the main machine shafts and multi-pulley configurations. It transfers motor torque to the various machine sections rather than conveying the actual paper substrates.
