Polyurethane Timing Belt VS Rubber Timing Belt: Suitable Working Conditions Analysis

Premature drive system failure carries severe operational penalties. Incorrect material specification remains a leading cause of unplanned downtime in synchronous drive systems. When belts fail early, production stops. Engineers and procurement teams frequently struggle to quantify the mechanical trade-offs between polyurethane and rubber elastomers. This knowledge gap routinely leads to over-specification, wasting project budgets, or under-specification, guaranteeing frequent maintenance interventions.

You need an objective, evidence-based evaluation framework to make the right material choice. Selecting the optimal belt depends entirely on mechanical loads, environmental factors, and precision requirements. This article breaks down the physical properties of both materials. We evaluate how polyurethane and rubber behave under stress, temperature extremes, and chemical exposure to help you engineer a reliable drive architecture.

• Material Baseline: Rubber timing belts (typically neoprene with fiberglass cords) excel in high-speed, high-temperature, and noise-sensitive environments, whereas polyurethane (PU) belts dominate in high-torque, precise-positioning applications.

• Environmental Resilience: PU offers superior resistance to abrasion, oils, acids, and alkalis, but is vulnerable to high temperatures and hydrolysis; rubber provides better broad-spectrum temperature stability.

• Application Specificity: The choice dictates system architecture, including pulley material, tensioning mechanisms, drive housing requirements, and whether an open-ended or endless belt configuration is required.

1. Material Science and Structural Composition

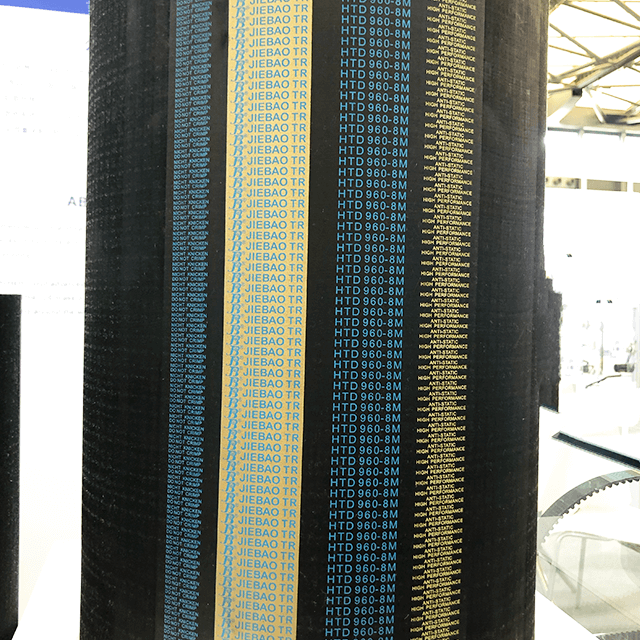

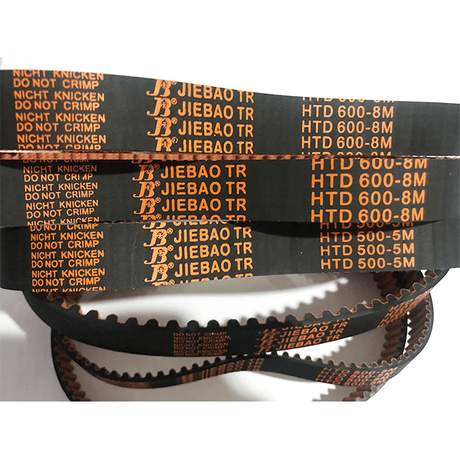

Anatomy of a Rubber Timing Belt

Standard rubber synchronous belts rely on a composite construction to handle dynamic loads. The primary body consists of neoprene or a similar synthetic rubber compound. This elastomer protects the internal components and transfers shear forces from the teeth to the tensile members. Inside the belt, continuously wound fiberglass tensile cords provide the primary load-bearing strength. These cords prevent the belt from stretching under heavy rotational loads. Manufacturers treat these fiberglass cords with a resorcinol-formaldehyde-latex (RFL) dip to ensure a strong chemical bond with the surrounding neoprene.

Manufacturers apply a tough polyamide (nylon) fabric facing over the teeth. This fabric significantly reduces the coefficient of friction during pulley engagement and protects the base rubber from rapid abrasive wear. The manufacturing process involves vulcanization. Heat and pressure force chemical cross-linking within the rubber molecules. This thermoset reaction gives the rubber timing belt its inherent flexibility and excellent thermal stability. Because of the vulcanization mold process, these belts are traditionally manufactured as continuous, endless sleeves. This closed-loop construction dictates specific center-distance calculations and tensioning parameters during installation.

When handling rubber belts with fiberglass cords, technicians must exercise caution. Fiberglass possesses high tensile strength but poor bend radius tolerance. Crimping or sharply folding the belt during installation will fracture the internal glass fibers, leading to catastrophic failure under load long before the rubber exterior shows signs of wear.

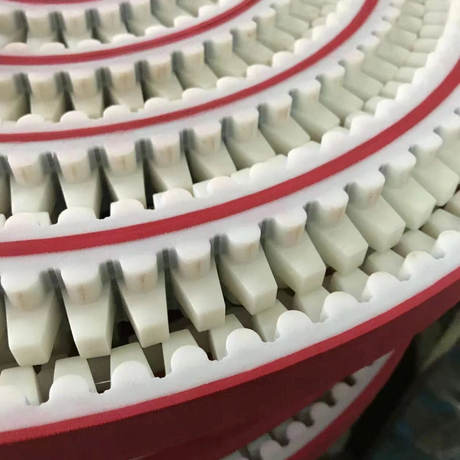

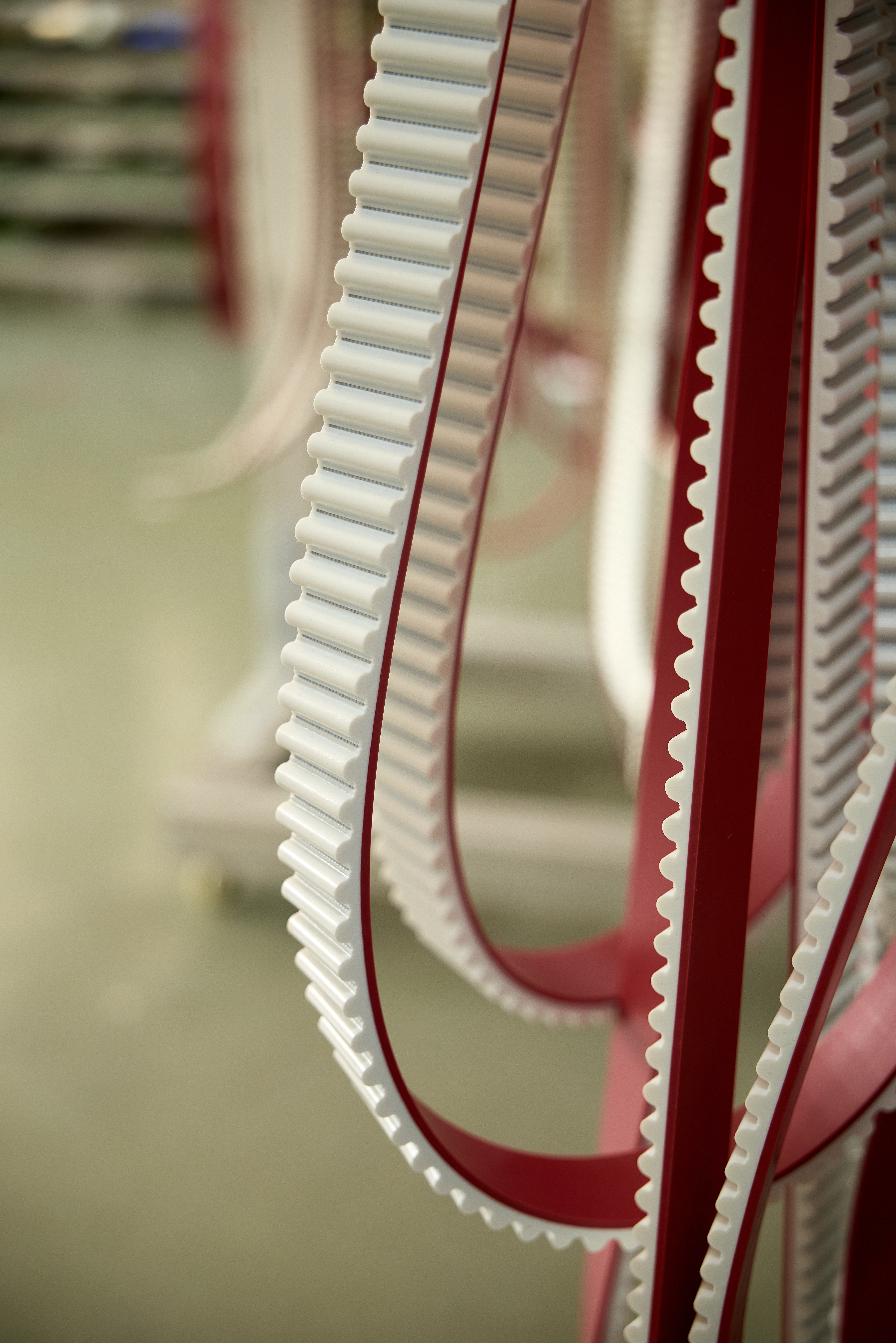

Anatomy of a Polyurethane Timing Belt

Polyurethane belts utilize a fundamentally different chemical structure. They consist of thermoplastic polyurethane (TPU), which can be either extruded or cast. Instead of fiberglass, manufacturers typically embed rigid tensile cords made of steel, Kevlar, or carbon fiber. The thermoplastic nature of polyurethane means it lacks the chemical cross-linkers found in vulcanized rubber. This characteristic allows manufacturers to use highly versatile production methods.

Extrusion produces long, continuous lengths of belting, while casting allows for high-precision endless belts. The rigid tensile members provide an exceptionally high modulus of elasticity. This stiffness prevents the belt from elongating under heavy loads. Extruded open-ended PU belts offer a distinct structural advantage for machine builders. You can cut these rolls to exact lengths for linear motion systems. Alternatively, you can thermally weld the ends together using a finger splice technique to create custom endless belts for unique conveying applications.

It is important to note that a welded PU belt loses approximately 50% of its maximum tensile strength at the splice joint because the internal steel cords are severed and do not reconnect. The weld relies entirely on the melted polyurethane for strength. For high-torque power transmission, you must specify a truly endless cast PU belt where the steel cords remain continuous.

2. Performance Evaluation Dimensions: Features to Outcomes

Dimensional Stability, Creep, and Precision Positioning

Stiffness defines the primary mechanical difference between these two materials. Polyurethane exhibits a much higher modulus than rubber, typically measuring around 92 Shore A hardness compared to rubber's 70 to 80 Shore A. This rigidity makes PU the industry standard for linear motion, robotics, and precise registration tasks. When a system requires exact positioning, the belt must handle constant tension without stretching over time. Polyurethane resists this gradual elongation, known as creep, better than rubber. The rigid teeth maintain their exact pitch, resulting in minimal backlash during reversing operations.

Rubber possesses slight inherent elasticity. While fiberglass cords prevent overall belt stretch, the rubber teeth themselves can deflect slightly under heavy loads. This minor deflection impacts tooth engagement in high-torque, low-speed scenarios. The teeth may compress slightly against the pulley grooves, causing microscopic variations in rotational position. Therefore, rubber is less ideal for multi-axis CNC machines but perfectly adequate for continuous power transmission where absolute positional accuracy is secondary to speed.

Acoustic Performance and Flexibility

Noise generation varies significantly across different operating speeds. Rubber provides excellent acoustic dampening properties at high RPMs. The softer elastomer absorbs the impact energy as the belt teeth mesh with the metal pulley grooves. It also deforms slightly to push trapped air out of the pulley grooves quietly. This makes rubber the preferred choice for high-speed applications where noise reduction is critical. Polyurethane, being harder and more rigid, generates distinct impact noise at high speeds. The rigid engagement slaps against the pulley, amplifying the sound.

However, the acoustic debate requires nuance. While rubber dampens high-speed noise, PU can provide exceptionally smooth and quiet operation in low-speed, constant-tension linear drives. Flexibility also dictates system design. Rubber's superior flexibility allows it to wrap around smaller minimum pulley diameters. It handles tight bend radii without inducing flex fatigue in the fiberglass tensile cords. Polyurethane belts with steel cords require larger pulleys to prevent the internal wires from fatiguing and snapping over time.

Wear Resistance and Particulate Shedding

Polyurethane inherently resists abrasion better than standard synthetic rubber. The tough thermoplastic surface withstands constant friction and resists tooth shear under heavy loads. This durability ensures a long operational life in demanding material handling applications. Rubber teeth, even with nylon facing, will eventually wear down and change profile after millions of engagement cycles.

Particulate shedding is a major concern in specialized environments. As rubber belts wear, they shed microscopic black dust. This particulate matter contaminates cleanrooms, medical device manufacturing lines, and food processing facilities. Polyurethane sheds significantly less particulate matter. It maintains a clean operating environment, making it the default specification for pharmaceutical and food-grade compliance.

3. Suitable Working Conditions and Environmental Tolerances

Temperature Extremes and Thermal Degradation

Operating temperature ranges dictate material survivability. Standard neoprene rubber belts reliably operate in ambient temperatures ranging from -30°C to 100°C (-22°F to 212°F). The cross-linked thermoset structure maintains its integrity under constant heat. Polyurethane belts generally have a narrower operating window, typically functioning safely between -30°C and 80°C (-22°F to 176°F).

Failure modes differ drastically when temperatures exceed these limits. When rubber faces excessive heat over prolonged periods, it undergoes thermal degradation. The material hardens, loses flexibility, and eventually develops deep transverse cracks down to the tensile cords. Polyurethane reacts differently to extreme heat. Because it is a thermoplastic, excessive temperatures cause the material to soften. The teeth lose their shear strength, and the belt experiences rapid tensile loss, eventually melting or deforming under load.

Chemical, Oil, and Ozone Exposure

Chemical compatibility often drives the final specification. Polyurethane demonstrates superior resistance to petroleum-based oils, industrial solvents, and ozone. It also withstands exposure to specific acids and alkalis without degrading. This makes PU ideal for automated machining centers where cutting fluids and lubricating oils constantly splash onto the drive components.

Rubber remains vulnerable to certain solvents and heavy oil exposure. Oil causes standard neoprene to swell, softening the teeth and leading to rapid failure. However, rubber provides excellent reliability in standard industrial ambient conditions involving dust and dry dirt. You must also account for hydrolysis. Standard ester-based polyurethane degrades rapidly in high-humidity or washdown environments. Water molecules break down the polymer chains, causing the belt to become brittle and crumble. To mitigate this implementation risk, engineers must specify ether-based PU or revert to specialized rubber compounds for wet environments.

4. Application Matching and Solution Categories

When to Specify a Rubber Timing Belt

You should specify rubber when your success criteria prioritize continuous, high-speed power transmission. Rubber thrives in applications running at thousands of RPMs. It handles elevated ambient temperatures found inside machine enclosures or engine compartments. If your system requires acoustic dampening to meet workplace noise regulations, rubber is the optimal choice. Common applications include HVAC blower drives, automotive engine synchronization, high-speed industrial conveyors, and heavy-duty agricultural machinery.

When to Specify a Polyurethane Timing Belt

Polyurethane is the correct choice for high-torque, low-speed drives requiring absolute precision. Specify PU for multi-axis positioning systems where zero backlash is mandatory. It is the only logical choice for clean environments requiring low particulate shedding. Machine builders heavily rely on open-ended PU rolls for long-span linear motion systems. Furthermore, PU allows for custom welded profiles and cleats, making it indispensable for packaging machinery, CNC routers, automated assembly lines, and glass manufacturing equipment.

Complex Routing: The Double Sided Belt

Many modern machine designs require power transmission from both sides of the belt. Serpentine drives route a single belt around multiple pulleys, changing rotational direction across the system. A Double Sided Rubber Timing Belt excels in these complex routing scenarios. The dual-tooth profile allows synchronous engagement on both the inside and outside loops.

Using rubber in this configuration maintains necessary flexibility. The material bends in alternating directions without generating excessive internal heat buildup. It resists flex fatigue across multiple pulleys. While double-sided PU belts exist, the rigid steel cords require massive pulley diameters to survive reverse bending. Rubber provides a much more compact footprint for serpentine power transmission, allowing engineers to design tighter, more space-efficient drive layouts.

5. Overall Value and Lifecycle Longevity

Initial Procurement vs. Lifecycle Longevity

Evaluating the true value of a drive system requires looking beyond the initial purchase order. Molded rubber belts generally present a lower upfront material cost due to high-volume vulcanization processes. They are mass-produced in standard lengths and widths. Extruded or cast polyurethane belts often carry a higher initial procurement cost, especially when custom lengths, welded cleats, or specific ether-based compounds are required.

However, lifecycle longevity shifts the value equation. In an environment heavily contaminated with cutting oils, a cheaper rubber belt will swell and fail within weeks, whereas a polyurethane belt will run for years. Conversely, placing a polyurethane belt in a high-temperature oven conveyor will result in rapid melting, making rubber the only viable long-term solution. The most cost-effective belt is always the one matched correctly to the environmental and mechanical loads.

Maintenance and Replacement Intervals

Predictability of failure allows maintenance teams to schedule replacements during planned downtime. Rubber belts excel in predictability. They show visible signs of wear long before catastrophic failure. Maintenance technicians can inspect the belt for edge fraying, root cracking, or hardening of the neoprene. This visual feedback allows for proactive replacement.

Polyurethane belts often fail more abruptly. Because the TPU exterior is highly abrasion-resistant, the belt may look brand new even as the internal steel cords suffer from flex fatigue. When subjected to shock loads beyond their rigid tolerance, the steel cords can snap without warning. While PU belts generally require less tensioning maintenance over time due to their lack of stretch, their failure modes demand strict adherence to calculated lifespan hours rather than visual inspections.

6. Implementation Risks and Engineering Mitigation

Tensioning and Misalignment Tolerances

Polyurethane belts demand strict alignment protocols. Due to their high stiffness and rigid tensile cords, PU belts do not forgive poor installation. If the pulleys are misaligned, the stiff belt will track hard against the pulley flanges. This leads to rapid flange wear, edge fraying, and eventual cord exposure. You must use precision laser alignment tools when installing a PU Timing Belt to ensure parallel and angular accuracy.

1. Mount the laser emitter on the stationary drive pulley.

2. Target the receiver on the driven pulley.

3. Adjust the motor base until angular misalignment is less than 0.25 degrees.

4. Apply tension strictly according to the manufacturer's sonic tension meter specifications.

Rubber belts offer a marginally higher tolerance for slight misalignment. The inherent compliance of the elastomer allows the belt to flex slightly and accommodate minor tracking errors without immediately destroying the belt edge. However, relying on this flexibility is poor engineering practice. Proper tensioning remains critical for both materials to prevent tooth jump, commonly known as ratcheting, under heavy acceleration.

Pulley Compatibility and Wear

The interaction between the belt material and the pulley dictates the lifespan of the entire drive system. Polyurethane belts, especially those with steel cords, are highly abrasive to softer metals. If you run a stiff PU belt on standard aluminum pulleys in an environment with ambient dust, the belt will rapidly wear down the pulley teeth. The dust embeds into the TPU, acting as a lapping compound against the aluminum.

To mitigate this risk, engineers must specify hard-anodized aluminum or steel pulleys when using polyurethane in abrasive environments. Rubber belts are significantly gentler on aluminum pulleys. The softer nylon facing on rubber teeth minimizes metal wear, allowing for the use of lighter, more cost-effective aluminum pulleys in standard power transmission setups.

Conclusion

Neither polyurethane nor rubber is universally superior. Your choice is strictly dictated by the hierarchy of your application needs. You must weigh precision against speed, chemical exposure against temperature limits, and endless loops against open-ended linear configurations. Selecting the wrong material guarantees premature failure, while the right choice ensures years of reliable operation.

1. Measure the ambient operating temperature of your drive enclosure during peak load to ensure it falls within the material's safe range.

2. Inspect existing pulleys for flange wear or tooth pitting to determine if your current alignment tolerances meet the strict requirements of polyurethane.

3. Verify all chemical exposure risks in the operating environment, specifically looking for washdown fluids, airborne oil mist, or industrial solvents.

4. Calculate the required minimum pulley diameter based on the selected tensile cord material to prevent internal flex fatigue.

FAQ

Q: What is the main difference between a polyurethane and a rubber timing belt?

A: The primary difference lies in material composition and intended use. Rubber belts use a vulcanized elastomer with fiberglass cords, ideal for high-speed, high-temperature power transmission. Polyurethane belts use a thermoplastic with steel or Kevlar cords, designed for high-torque, precision positioning, and linear motion.

Q: Can I replace a rubber timing belt with a polyurethane one?

A: Direct replacement is rarely simple. You must verify pulley profiles, as rigid PU belts require stricter alignment and often larger minimum pulley diameters. You also need to assess environmental conditions, ensuring ambient temperatures do not exceed PU limits and that pulleys can withstand the harder material.

Q: Which timing belt material is better for high-temperature environments?

A: Rubber is superior for high temperatures. Standard neoprene rubber operates reliably up to 100°C (212°F) due to its cross-linked thermoset structure. Polyurethane is a thermoplastic that begins to soften and lose shear strength at temperatures above 80°C (176°F).

Q: Why are polyurethane belts preferred for linear motion and robotics?

A: Polyurethane offers a high modulus of elasticity, meaning it resists stretching under constant tension. This rigidity ensures exact tooth pitch is maintained, resulting in zero backlash. Additionally, PU can be easily extruded into open-ended lengths required for linear actuators.

Q: Are double sided rubber timing belts suitable for high-torque applications?

A: Yes, they handle high torque well in serpentine drives. The rubber construction provides the necessary flexibility to bend in alternating directions across multiple pulleys without excessive heat buildup or flex fatigue, maintaining synchronous load distribution.

Q: Which timing belt material produces less noise during operation?

A: Rubber produces less noise at high speeds because the softer elastomer dampens the impact energy against the pulley. However, in low-speed, constant-tension linear applications, polyurethane provides exceptionally smooth and quiet operation.

Q: How does chemical exposure affect timing belt lifespan?

A: Polyurethane highly resists petroleum oils, solvents, and ozone, extending lifespan in machining environments. Rubber swells and degrades when exposed to heavy oils. However, standard ester-based PU is vulnerable to hydrolysis in wet environments, whereas specialized rubber handles water exposure better.
