High-speed logistics sorting lines demand precise material handling. Unexpected belt failure directly equates to facility downtime, sorting inaccuracies, and lost throughput. When thousands of parcels move through a distribution hub every hour, the reliability of the conveying equipment dictates the operational tempo. Specifying the wrong lightweight belt material leads to premature wear, tracking failures, and frequent replacement cycles that disrupt facility schedules.
Facility managers and maintenance engineers face a choice between different polymer compounds when upgrading or replacing their sorting lines. This guide provides a technical comparison between PU and PVC conveyor belts, establishing clear evaluation criteria to optimize sorting line performance and mitigate implementation risks. By understanding the mechanical and chemical properties of these materials, operations teams can align their belting specifications with the exact demands of their material handling environment.
A standard PVC conveyor belt offers a highly cost-effective, durable solution for general material handling and carton movement in climate-controlled environments.
PU (Polyurethane) belts provide superior flexibility, fatigue resistance, and chemical tolerance, making them necessary for systems with small pulley diameters or oily environments.
PVK logistic conveyor belts serve as a high-impact alternative for heavy-duty parcel sorting requiring enhanced cut and tear resistance.
Final material selection depends on a strict matrix of load requirements, environmental conditions, mechanical constraints, safety compliance, and budget parameters.
Modern distribution centers operate under relentless throughput demands. The conveyor belts driving these systems cannot be selected based on dimensions alone. They must meet rigorous mechanical and environmental criteria. Understanding these baseline requirements ensures the selected material will perform reliably under continuous operational stress.
High-speed sorting requires lightweight, single- or two-ply fabric core construction rather than the heavy-duty rubber belts traditionally used in mining or bulk material handling. Lightweight belts significantly reduce the overall mass of the conveying system. This reduction in mass lowers the inertia the drive motors must overcome, resulting in lower energy consumption and the ability to execute rapid start-stop sequences. Precise singulation relies entirely on the belt's ability to respond instantly to motor commands without lag or excessive momentum.
The fabric core, typically constructed from woven polyester, provides the necessary lateral stability to keep the belt flat against the slider bed while maintaining longitudinal flexibility to wrap around drive pulleys. This dynamic balance allows sorting facilities to run miles of conveyor lines efficiently, minimizing the electrical draw on the facility while maximizing package throughput.
Fabric Core Type | Flexibility | Lateral Stability | Best Application |
|---|---|---|---|
Single-Ply | Maximum | Low | Small pulley transfers, tight knife edges. |
Two-Ply | Moderate | High | Standard logistics sorting, long accumulation lines. |
Three-Ply | Low | Maximum | Heavy load inclines, industrial manufacturing. |
Friction requirements dictate the surface characteristics of the belt. Incline and decline sorting zones necessitate specific anti-slip textured surfaces to prevent packages from sliding backward or accelerating uncontrollably downward. If the coefficient of friction is too low, parcels shift out of position, causing optical scanners to misread barcodes and automated diverters to miss their targets.
Dimensional stability under continuous tension is equally critical. Belts subjected to heavy loads will naturally experience some degree of elongation. Excessive stretching leads to tracking errors, where the belt wanders off the center of the pulleys and rubs against the conveyor frame. High-quality lightweight belts utilize specially treated tension members within the fabric core to limit elongation to less than one or two percent over their operational lifespan.
Acoustic performance also plays a major role in large-scale warehousing operations. Thousands of feet of belting sliding over metal beds generate significant noise. Certain fabric backings are engineered specifically for low-noise operation, utilizing specialized weave patterns or impregnated lubricants to reduce friction against the slider bed, thereby protecting workers from hazardous noise levels.
Automated sorting lines rely heavily on sensitive electronic equipment, including optical sensors, RFID readers, and barcode scanners. As synthetic belts move over metal slider beds, they generate static electricity. Anti-static (ESD) properties must be integrated into the belt's construction to safely dissipate this charge. Failure to use anti-static belts can result in electrostatic discharges that fry sensitive sensors or cause phantom readings in the sorting logic.
Enclosed warehouse facilities must adhere to strict fire safety regulations. Flame retardancy requirements, such as those outlined in the ISO 340 standard, ensure that if a belt is exposed to an open flame or extreme friction-induced heat, it will self-extinguish within seconds after the heat source is removed. This prevents the conveyor line from acting as a fuse that spreads fire across different zones of the distribution center.
The PVC conveyor belt stands as the standard choice for the logistics and warehousing industry. Polyvinyl chloride provides an exceptional balance of mechanical strength and surface grip, making it the default choice for the vast majority of standard parcel handling applications.
PVC is a thermoplastic polymer that can be formulated to achieve various levels of hardness, typically measured on the Shore A durometer scale. For logistics applications, the PVC compound is usually engineered to be relatively soft and highly grippy, ensuring excellent adhesion to cardboard boxes and polybags. The manufacturing process involves calendering or extruding the PVC material over a synthetic fabric core.
Construction typically features either a single-ply or two-ply fabric core. Single-ply belts offer maximum flexibility for smaller pulleys, while two-ply belts provide superior lateral stability and higher tensile strength for longer conveyor runs and heavier accumulation loads. The bottom surface of the belt is often left as bare fabric or coated with a specialized low-friction pattern to glide smoothly over steel slider beds.
The high tensile strength of a standard PVC belt makes it highly suitable for moving standard cartons, totes, and bagged items across extensive warehouse layouts. When a facility requires miles of conveyor lines across multiple sorting zones, outfitting the entire system with PVC ensures reliable performance across standard ambient environments.

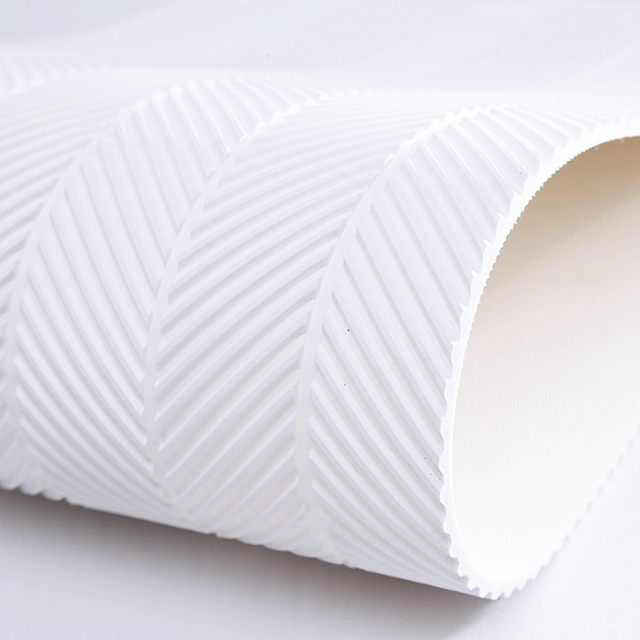

Another major advantage is the availability of diverse surface textures. Manufacturers can easily press patterns into the thermoplastic surface during production. Common profiles include the grass pattern for gentle inclines, rough top for steeper elevation changes, and diamond patterns for controlled accumulation zones. The inverted pyramid pattern is frequently used for optical sorting lines because it reduces glare for overhead cameras. This versatility allows facility engineers to specify the exact grip profile needed for every distinct section of the sorting matrix, ensuring packages remain stable regardless of the conveyor's angle or speed.
Despite its widespread use, PVC does have strict operational boundaries. The material exhibits reduced flexibility at lower temperatures. In cold-storage logistics or unheated warehouses during winter months, standard PVC can become brittle, leading to surface cracking and eventual delamination. PVC offers lower resistance to abrasive wear and harsh industrial chemicals compared to more advanced polymers. Constant friction from heavy, sharp-edged crates or exposure to machine oils will degrade a PVC surface rapidly.
When operational demands exceed the physical capabilities of standard polyvinyl chloride, polyurethane (PU) belts provide the necessary mechanical upgrade. PU belts are engineered for extreme durability, flexibility, and resistance to harsh environmental factors, making them indispensable for specific, highly demanding sorting applications.
PU belts are constructed by extruding a thermoplastic polyurethane coating over high-strength synthetic tension members. The chemical structure of polyurethane grants it unique physical properties that bridge the gap between rubber and plastic. While PU is widely recognized for its food-grade compliance capabilities due to its non-porous, easy-to-clean surface, its primary value in logistics stems from its structural integrity under continuous mechanical stress.
The fabric core in PU belts is often thinner and tighter than that found in PVC equivalents. This allows the overall belt profile to remain exceptionally thin while maintaining a high modulus of elasticity, meaning it resists stretching under load while remaining incredibly pliable.
The standout feature of a PU belt is its superior flexibility. Modern sorting facilities frequently utilize tight transfer points to move small parcels between conveyors without them falling through the gaps. These transfers require the belt to wrap around knife edges or significantly smaller pulley diameters, sometimes as small as 14mm. A standard belt would quickly delaminate under this severe bending stress, but PU maintains its structural bond and flexibility, allowing for smooth micro-transfers.
PU boasts high resistance to oils, greases, and chemical exposure. In mixed-use industrial warehouses where conveying equipment might come into contact with lubricated machine parts, hydraulic fluid leaks, or accidental chemical spills, PU prevents the belt surface from swelling, softening, or degrading. Its excellent fatigue resistance is particularly beneficial for systems requiring continuous flexing, rapid reversing, or high-speed diverter impacts. The polymer matrix of polyurethane absorbs these micro-impacts without developing the stress fractures commonly seen in lesser materials.
The primary constraint of polyurethane is the potential for over-specification. The raw materials and manufacturing processes required to produce PU are more complex than those for PVC. Specifying PU for a standard dry-goods sorting line moving basic cardboard boxes represents an unnecessary upgrade. Facility managers must carefully justify the material based on specific mechanical requirements, such as small pulley diameters or harsh environmental conditions, to ensure the belt matches the actual operational demands.
While PU and PVC cover the majority of lightweight conveying needs, certain logistics hubs face unique material handling challenges that require specialized belting architectures. Heavy impact zones and highly customized automated sorting machinery demand alternative solutions.
A PVK Logistic Conveyor Belt is fundamentally different from standard coated belts. Instead of distinct layers of fabric and polymer, PVK utilizes a solid woven fabric construction that is thoroughly impregnated with a specialized polyvinyl chloride compound. This unified structure eliminates the risk of delamination entirely.
PVK is specified primarily for its extreme impact resistance. In heavy-duty sorting hubs where large, sharp, or irregular parcels are dropped onto the belt from chutes or robotic arms, standard belts suffer from deep cuts and gouges. The solid woven core of a PVK belt provides enhanced tear resistance and dimensional stability, absorbing heavy shocks without compromising the belt's integrity. Because the polymer is impregnated through the entire fabric rather than just coated on top, the belt will not peel even if the top surface is heavily scored by a sharp object. PVK belts often feature superior flame retardancy, making them a staple in massive, high-throughput parcel hubs handling unpredictable freight.
Automated distribution centers frequently deploy complex machinery that goes beyond simple linear conveying. A Special/Multi-purpose Conveyor Belt is required for integration into advanced systems like cross-belt sorters, shoe sorters, and specialized singulation equipment. These machines require belts with highly specific friction coefficients, exact thickness tolerances, and unique lateral rigidity profiles to function correctly.
Unique material handling challenges often necessitate custom fabrication. Multi-purpose belts can be heavily modified post-production. Engineers can weld integrated cleats onto the surface for extremely steep incline conveying where standard textured patterns fail. Corrugated sidewalls can be added to contain loose items. For automated optical inspection lines or lightweight polybag handling, these belts can be precision-perforated to operate over vacuum beds, holding the items perfectly flat as they move at high speeds.
Choosing between these two dominant materials requires a granular comparison of how they behave under specific mechanical and environmental stresses. A direct evaluation helps maintenance teams match the polymer to the exact zone within their sorting facility.
Evaluation Metric | PVC Conveyor Belt | PU Conveyor Belt |
|---|---|---|
Flexibility & Pulley Diameter | Moderate; requires standard to large pulleys to prevent delamination. | Excellent; capable of wrapping around knife-edges and micro-pulleys. |
Abrasion Resistance | Standard; suitable for cardboard and polybags, wears under heavy friction. | Superior; highly resistant to scuffing in accumulation zones. |
Oil & Chemical Tolerance | Low; degrades, swells, or hardens when exposed to industrial oils. | High; maintains structural integrity against greases and chemicals. |
Temperature Range | -10°C to +80°C; becomes brittle in freezing environments. | -30°C to +90°C; remains pliable in cold-storage logistics. |
In high-throughput accumulation zones, packages are frequently held stationary by a barrier while the belt continues to run underneath them. This creates constant friction. PVC will eventually show signs of surface wear, polishing, and degradation under these conditions. PU, with its higher abrasion resistance, withstands this continuous friction significantly longer, maintaining its original surface profile.
V-Guide profile performance also differs drastically. V-guides are polymer strips welded to the bottom of the belt that run inside a groove on the slider bed, ensuring the belt tracks perfectly straight. PU guides offer superior flexibility and fatigue resistance, making them ideal for oily environments and systems with small pulleys. PVC guides provide reliable tracking for standard layouts but can crack if forced around pulleys that are too small for their bending radius.
Performance stability varies wildly based on the ambient environment. In standard, climate-controlled ambient warehouses, PVC performs flawlessly. In cold-storage logistics facilities handling refrigerated or frozen goods, PVC stiffens and loses its grip. PU maintains its elasticity well below freezing, ensuring reliable sorting regardless of the facility's internal climate.
Chemical exposure risks also dictate material choice. In mixed-use industrial warehouses where conveying systems might transport machined parts coated in cutting fluids alongside standard parcels, a PVC Conveyor Belt will absorb the oils, causing the cover to swell and eventually peel away from the fabric core. PU remains impervious to these common industrial chemicals.
The method used to join the ends of the belt into a continuous loop impacts maintenance downtime. Both materials commonly utilize finger splicing techniques, where the ends are punched into interlocking zigzag patterns and melted together using a heated vulcanizing press. PU generally requires more precise temperature control during the splicing process to ensure a solid bond without burning the material.
Step splicing, where layers of the fabric core are peeled back and overlapped, is another technique used primarily for thicker belts. On-site repairability favors PVC slightly, as the material is more forgiving of slight temperature variations during emergency repairs. Maintenance crews must ensure their hot presses and splicing foils are specifically calibrated for the material they are repairing to minimize downtime implications.
Standard splicing procedures require strict adherence to the following steps:
Square the belt ends perfectly to ensure straight tracking post-splice.
Punch the finger geometry according to the manufacturer's die specifications.
Align the fingers on the heating press platen, ensuring zero gaps between the interlocking teeth.
Apply the specific splicing foil or paste designed for the polymer type.
Engage the press at the exact dwell temperature and pressure required for the material thickness.
Allow the splice to cool completely under pressure before removing it from the press.
Even the highest quality belting material will fail prematurely if the surrounding mechanical system is poorly designed or improperly maintained. Recognizing implementation risks allows facility engineers to proactively safeguard their conveying assets.
Continuous misalignment is the leading cause of premature belt failure. When a belt wanders off-center, its edges rub against the steel conveyor frame, leading to severe edge fraying, fabric core exposure, and eventual tearing. Over-tensioning the belt to force it to track straight only exacerbates the problem by destroying pulley bearings and stretching the belt beyond its elastic limit.
Mitigation requires a comprehensive approach. Proper V-guide specification ensures the belt is physically guided along the correct path. Strict adherence to minimum pulley diameters prevents the belt from bowing or warping. Maintenance teams must conduct regular alignment audits, utilizing laser alignment tools to ensure all pulleys and idlers are perfectly square and level to the conveyor frame.
Over time, dust from cardboard boxes, combined with continuous friction in accumulation zones, can polish the surface of the belt. This phenomenon, known as surface glazing, drastically reduces the coefficient of friction. Slippage on incline conveyors leads to sorting errors, package damage from tumbling, and severe safety hazards for personnel working nearby.
Mitigation involves selecting appropriate anti-slip textures based on specific incline angles, maximum package weights, and environmental humidity. A rough top or diamond pattern provides mechanical grip that resists glazing far better than a smooth surface. Implementing strict cleaning protocols to remove dust buildup preserves the surface integrity and grip of the belt throughout its operational lifecycle.
The splice is inherently the weakest point of any conveyor belt. Poorly executed splices lead to joint degradation, where the fingers begin to peel apart under tension. This creates a raised edge that catches on slider beds, diverters, and return rollers, eventually ripping the belt apart during operation. Contamination during the vulcanization process, such as dust or oil on the splicing foil, prevents the polymer from bonding correctly.
Mitigation requires strict environmental control during maintenance procedures. Maintenance technicians must clean the belt ends thoroughly with approved solvents before applying the heating press. Utilizing a press with uniform heat distribution and integrated water cooling ensures the polymer cures correctly without creating brittle zones around the splice. Regular visual inspections of the splice joint allow teams to identify micro-tears and schedule preventative repairs before a catastrophic failure halts the sorting line.
Audit your facility's mechanical constraints by measuring the smallest pulley diameters on your sorting line to ensure compatibility with the selected belt material.
Request physical material samples of different surface textures to test against your specific packaging types, including cardboard, polybags, and plastic totes.
Consult with a belting engineer to verify tensioning requirements and ensure your maintenance team possesses the correct vulcanizing presses and splicing foils.
Implement a routine alignment schedule using laser tools to prevent edge fraying and tracking failures across all conveyor zones.
A: The primary difference lies in the polymer compound. PVC is highly durable for standard carton sorting in ambient conditions. PU offers superior flexibility, allowing it to wrap around much smaller pulleys without delaminating, and provides excellent resistance to industrial oils, greases, and extreme cold.
A: Standard PVC is suitable for lightweight to medium-duty sorting. For heavy-duty logistics involving high impacts or sharp, irregular parcels, a solid woven PVK belt is recommended instead of rubber. PVK offers the necessary tear and impact resistance while maintaining the lightweight dynamics required for high-speed sorting.
A: A facility should upgrade to PVK when standard belts suffer from frequent cuts, gouges, or delamination due to heavy impacts. PVK is ideal for primary sorting hubs where heavy crates, metal parts, or unpredictable freight are dropped onto the conveyor from chutes or robotic loaders.
A: PU V-guides offer significantly higher fatigue resistance and flexibility compared to PVC. If a conveyor system utilizes very small pulleys, a PVC V-guide may crack or snap over time due to bending stress, whereas a PU V-guide will continuously flex without sustaining structural damage.
A: Yes. When incline angles exceed the grip capabilities of standard textured PVC, a multi-purpose belt customized with welded cleats or high-friction rubber inserts is required to prevent packages from sliding backward during elevation changes.
A: PU is vastly superior for cold storage. PVC becomes rigid and brittle at sub-zero temperatures, leading to cracking and tracking failures. Polyurethane maintains its elasticity and structural integrity in freezing environments, ensuring reliable operation in refrigerated or frozen logistics hubs.
