Power transmission failures in automated conveyor systems cause immediate operational bottlenecks. Unplanned downtime and massive maintenance overhead quickly erode facility profitability when drive components fail. Engineering teams face a continuous challenge: matching transmission components to exact operational demands. Whether a system requires high torque, precise synchronization, or resistance to harsh environmental conditions, component selection dictates reliability. Over-engineering wastes capital budget, while under-engineering guarantees premature mechanical failure.
Selecting the correct transmission components requires a rigorous technical evaluation framework. We must focus on the operational realities of sprockets, gears, and racks in industrial material handling. By understanding the mechanical limitations and advantages of each component, facility operators can specify the right drive mechanisms to ensure continuous, reliable conveyor performance.
The fundamental mechanical distinction dictates application: gears transmit power through direct tooth-to-tooth meshing for compact, high-torque environments, while sprockets engage with a chain, track, or belt to manage longer center distances.
Component selection must be dictated by center distance and synchronization requirements; a Spur Gear excels in short-distance power transfer, while a Roller Chain & Sprocket system spans larger gaps.
Environmental factors (e.g., abrasive dust in aggregate handling) drastically alter the lifecycle of exposed transmission parts, necessitating specific material choices, engineered chain sprockets, and targeted lubrication.
Precision timing and high-speed indexing require distinct solutions, making the choice between a Timing Pulley and a traditional chain drive a critical factor in system accuracy.
Long-term operational costs rely heavily on maintenance accessibility; utilizing split components or modular gearboxes reduces replacement downtime.

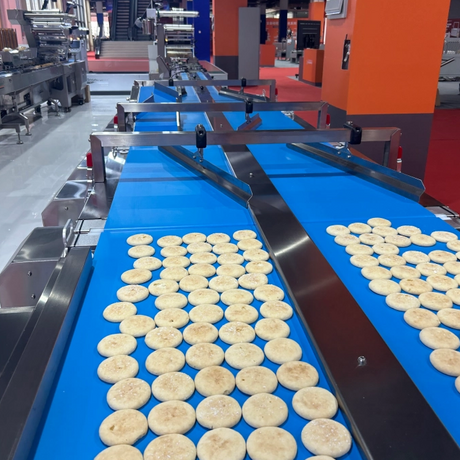

Automated conveyor systems rely entirely on heavy-duty power transmission to function. The baseline requirements for any conveyor drive system include continuous torque delivery, effective load shock absorption, and precise speed regulation. Without these elements, material handling becomes erratic. Drive components must transfer rotational force from the motor to the conveyor belt or rollers without excessive energy loss. Every application demands a specific balance of speed and torque to move loads effectively across the facility floor.
Power transmission components sit directly between the prime mover, typically an AC induction motor, and the driven load. The motor generates high-speed, low-torque rotational energy. Transmission systems step this speed down and multiply the torque to a usable level. The architecture usually involves a reducer or gearbox coupled directly to the motor shaft. A secondary drive mechanism, like a chain or belt system, then connects the gearbox output to the conveyor drive pulley. This layered approach allows engineers to fine-tune the mechanical advantage and adapt to specific spatial constraints within the plant layout.
Transmission failures trigger severe cascading effects across the entire conveyor system. When a drive component degrades, you will see several immediate consequences:
Belt Slippage: Worn drive components fail to maintain adequate tension, causing the conveyor belt to slip under heavy loads, which leads to inconsistent material flow and product jams.
Motor Overload: Excessive mechanical resistance from worn teeth or misaligned shafts forces the motor to draw higher amperage. This continuous overexertion eventually causes thermal overload and motor burnout.
Structural Fatigue: Severe vibrations generated by failing drives accelerate metal fatigue in the conveyor frame, loosening mounting brackets and damaging adjacent bearings.
Positional Inaccuracy: In indexing conveyors, worn transmission parts introduce backlash, destroying the precise positioning required for automated sorting or robotic picking stations.
Direct gear-to-gear meshing provides the most rigid method for power transmission. This solution category fits perfectly into applications characterized by short center distances and enclosed environments. When a conveyor requires rigid synchronization without any risk of slippage, gears deliver excellent performance. They handle massive torque loads within a highly compact footprint, making them the standard choice for heavy material handling equipment where space is limited.

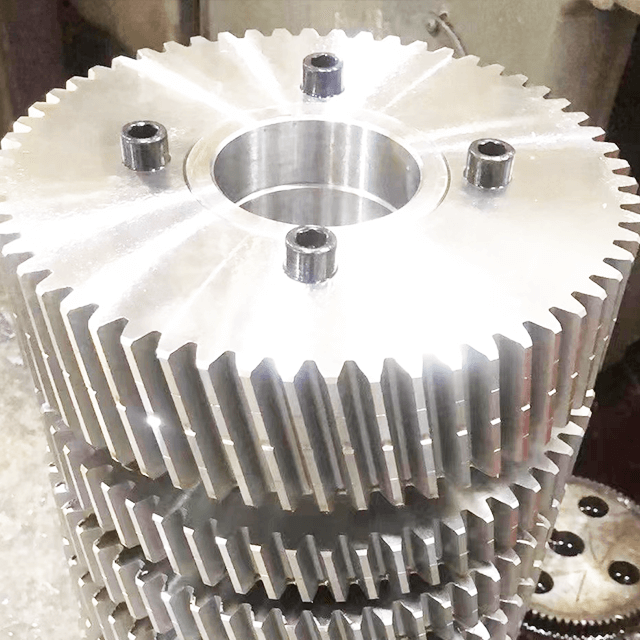

Parallel shaft applications frequently utilize the Spur Gear due to its straightforward design and high transmission efficiency. These components feature straight teeth cut parallel to the axis of rotation. As two spur gears mesh, the entire width of the tooth makes contact simultaneously. This instantaneous engagement transfers maximum power with zero axial thrust. Because there is no axial load pushing the gears apart along the shaft, you can use standard radial bearings, which simplifies the overall housing design.
This simultaneous tooth engagement presents specific mechanical trade-offs. While transmission efficiency remains exceptionally high, the sudden impact of the teeth generates significant noise and vibration at higher operational speeds. The mechanical shock limits their use in high-velocity applications. For conveyor systems, spur gears excel in low-speed, high-torque environments. Heavy-duty roller conveyors moving steel pallets, automotive assemblies, or bulk mining materials rely on these gears to provide brute rotational force without slipping.
Helical gears offer a sophisticated alternative to straight-cut designs. Their teeth are cut at an angle to the gear face, allowing for gradual engagement. As the gears rotate, contact begins at one end of the tooth and smoothly sweeps across the face. This progressive meshing drastically reduces noise and vibration, enabling helical gears to operate at much higher speeds than spur gears. The angled teeth also distribute the mechanical load across a larger surface area, increasing the overall torque capacity. However, this design generates axial thrust loads. You must install specialized thrust bearings to keep the shafts properly aligned under heavy loads.
Bevel gears solve a different architectural challenge: intersecting shafts. When a conveyor layout requires a 90-degree power redirection, bevel gears provide the necessary mechanical linkage. These cone-shaped gears allow the motor to sit parallel to the conveyor frame while driving a perpendicular shaft. Spiral bevel gears, a specific variant, combine the right-angle capability with the smooth engagement of helical teeth. We frequently use them in tight spatial configurations where a standard inline gearbox would protrude into walkways or interfere with other machinery.
Electric motors typically spin at 1750 or 3450 RPM, which is far too fast to drive a conveyor directly. Enclosed gearboxes step down the motor RPM to usable conveyor speeds while simultaneously multiplying the available torque. This speed reduction is mandatory for maintaining controlled material flow. The gearbox acts as the central hub of power regulation, translating raw motor output into precise mechanical force.
Specific gear sizes and internal arrangements determine the exact gear ratio of the unit. A 20:1 ratio means the motor must turn twenty times to rotate the output shaft once. This effectively increases the output torque by a factor of twenty, minus minor efficiency losses through the gear mesh. This ratio directly dictates the final output speed of the conveyor belt. Engineers calculate the required linear speed of the belt in feet per minute (FPM) and work backward through the drive pulley diameter to specify the exact gearbox ratio needed.
Enclosed gear sets offer immense protective benefits. Industrial environments expose equipment to abrasive dust, moisture, and chemical washdowns. A sealed gearbox houses the transmission components in a continuous oil bath, isolating them from external threats. This enclosure ensures consistent hydrodynamic lubrication, dissipates heat effectively, and drastically extends the operational lifecycle of the internal components compared to exposed drive systems.
When the distance between the driver and driven shafts exceeds the practical limits of direct gear meshing, chain drives become the optimal engineering solution. Spanning larger distances with gears requires multiple idler gears, which increases weight, complexity, and mechanical loss. Chain drives bridge these gaps efficiently, maintaining positive power transmission without relying on friction. They dominate heavy-duty conveying applications where shafts are separated by several feet.
Specifying a Roller Chain & Sprocket requires understanding critical dimensional specifications. The pitch represents the exact distance between the centers of adjacent chain pins. The sprocket tooth profile must match this pitch perfectly to ensure smooth engagement. As the sprocket rotates, the chain rollers seat themselves into the root of the sprocket teeth. This dynamic engagement transfers the rotational force into linear chain pull.
This combination excels at distributing mechanical load. Unlike a two-gear mesh where only one or two teeth bear the entire load at any given moment, a chain wraps around the sprocket. This wrap angle engages multiple teeth simultaneously. Distributing the force across half the sprocket minimizes localized wear and prevents tooth shearing under heavy loads. The chain itself absorbs minor misalignments and flexes during operation, offering a forgiving mechanical linkage that rigid gears cannot match.
For applications requiring extreme torque transfer within a restricted width, multi-strand sprocket configurations provide the solution. These components feature multiple rows of teeth machined into a single hub, designed to accept double, triple, or quadruple-strand roller chains. This design handles significantly higher load capacities without increasing the overall sprocket diameter. We use multi-strand setups to preserve the required speed ratio while multiplying the tensile strength of the drive.
Chain drives possess inherent elasticity compared to rigid gear meshes. The slight clearances between the chain pins, bushings, and rollers allow the chain to stretch momentarily under sudden loads. This elasticity provides a massive advantage in start-stop conveyor applications. When a heavily loaded conveyor initiates movement, the chain absorbs the initial mechanical shock. This protects the motor shaft, couplings, and gearbox internals from catastrophic impact forces that would otherwise shatter rigid gear teeth.
Extreme heavy-duty applications, such as mining and aggregate handling, destroy standard commercial chains. These environments demand specialized variants like engineered chain sprockets and custom crawler sprockets. Engineered sprockets feature induction-hardened teeth and reinforced hub designs to withstand the abrasive nature of crushed stone and metallic ores. The chain links are often cast or forged, providing massive tensile strength to drag thousands of pounds of raw material without elongation or failure.
Maintenance downtime directly impacts facility output. Replacing a solid sprocket on a heavy-duty conveyor often requires dismantling the entire drive assembly, removing heavy shafts, and breaking the roller chain. This process consumes hours of labor and requires specialized rigging equipment. Split sprockets and segmented designs eliminate this bottleneck entirely. These components are manufactured in two or more pieces that bolt together around the existing shaft.
The value of split sprockets lies in maintenance efficiency. Technicians can unbolt the worn sprocket halves and install the replacement without removing the shaft, disturbing the pillow block bearings, or breaking the chain loop. This modular approach reduces replacement downtime from hours to minutes. For critical conveyor lines operating around the clock, specifying split sprockets during the initial design phase guarantees rapid recovery during scheduled wear-part replacements.
Not all automated conveyors simply move material continuously in one direction. Many applications require precise linear positioning, rapid indexing, or synchronized multi-axis movement. Pushers, shuttle cars, and automated sorting diverters rely on specialized transmission components to convert rotary power into exact linear displacement. Standard chains and friction belts lack the rigidity and precision required for these tasks.

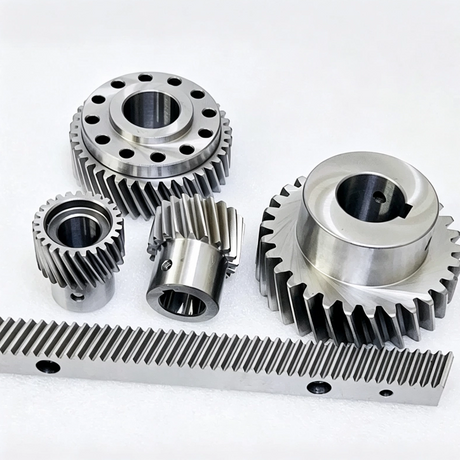

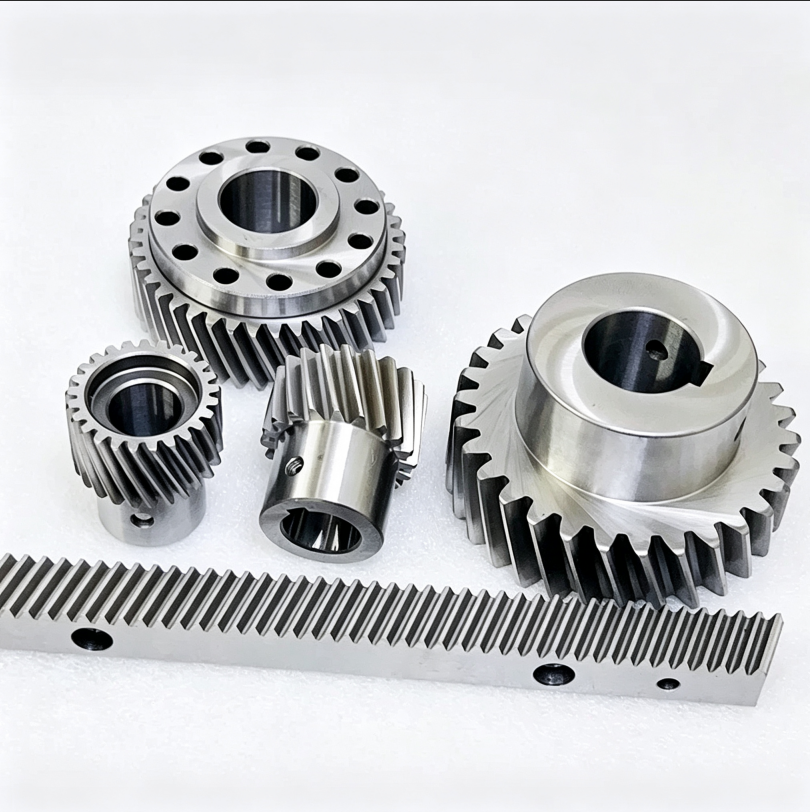

The rack and pinion mechanism provides a robust method for converting rotational motion into heavy-duty linear travel. A gear rack is essentially a spur gear unrolled into a flat, straight bar with teeth cut along one face. A standard pinion gear meshes with the rack. As the motor turns the pinion, the rotational force drives the rack linearly. This mechanism powers heavy pusher arms that transfer pallets between parallel conveyor lines or drives massive shuttle conveyors back and forth along a floor-mounted track.
Selecting a gear rack involves strict evaluation of load capacity and pitch. The tooth size must handle the maximum linear thrust required to move the load from a dead stop. Backlash—the slight clearance between the mating teeth—must be carefully managed. In heavy material handling, minor backlash is acceptable and prevents binding. However, for precise robotic loading stations integrated into the conveyor line, engineers must specify zero-backlash racks or utilize split-pinion designs to ensure absolute positional accuracy.

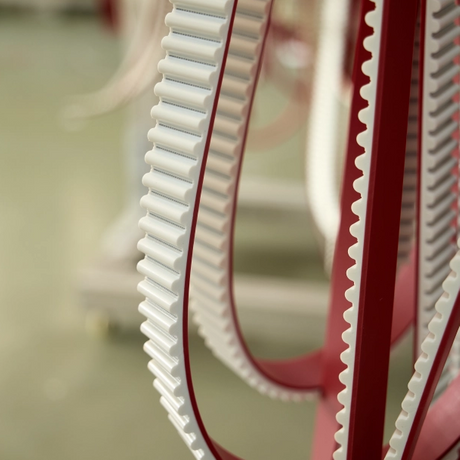

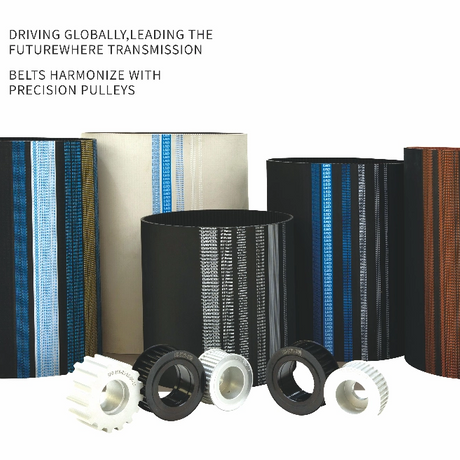

High-speed automated sorting lines require flawless synchronization between multiple conveyor sections. A Timing Pulley paired with a synchronous belt offers a high-precision alternative to traditional chain drives. The pulley features precisely machined grooves that mate perfectly with the molded teeth of the timing belt. This positive engagement eliminates slippage entirely, ensuring the driven shaft rotates in exact unison with the driver shaft.
Timing pulley systems provide distinct operational advantages. They require zero lubrication, making them ideal for food processing, pharmaceutical packaging, or clean-room conveyor applications where oil contamination is unacceptable. The belts possess significantly lower mass than steel chains, reducing rotational inertia and allowing for rapid acceleration and deceleration. Furthermore, timing belts eliminate chordal action—the slight vertical bouncing inherent in chain drives—resulting in exceptionally smooth, high-speed power transmission essential for fragile product handling.
Engineering teams must navigate a direct comparative framework when deciding between direct-mesh and chain-driven systems. Both component types transfer rotational energy, but their distinct mechanical properties dictate their suitability for specific conveyor architectures. Making the wrong choice leads to structural interference, excessive maintenance, or premature failure.
The mechanical distinction is absolute. While gears interlock directly with another toothed wheel, sprockets require an intermediate flexible linkage. Gear sprockets serve the same power transmission purpose as gears but differ fundamentally in design. A sprocket never meshes with another sprocket; it only engages with a chain, track, or belt. This reliance on a secondary linkage defines the physical footprint and the mechanical behavior of the entire drive system.
A standard engineering rule of thumb governs selection based on spatial layout. Gears are specified for compact, high-speed, and high-torque reduction applications. If the shafts can be placed within inches of each other, a gearbox or direct gear mesh provides the most durable solution. Conversely, sprockets are specified for extended center distances and moderate speeds. When power must be transferred across several feet, a roller chain and sprocket system accomplishes the task without the massive weight and cost of an extended gear train.
Feature | Direct Gears | Sprocket & Chain Systems |
|---|---|---|
Power Transfer Method | Direct tooth-to-tooth mesh | Intermediate flexible linkage (chain/belt) |
Ideal Center Distance | Short (inches) | Long (feet) |
Load Shock Tolerance | Low (rigid engagement) | High (elasticity in chain) |
Lubrication Needs | Enclosed oil bath | Continuous external application |
Environmental Resilience | High (when enclosed in gearbox) | Variable (depends on material and exposure) |
Operating environments dictate component survival. Enclosed gears thrive in harsh environments like mining, aggregate processing, and washdown facilities because the gearbox housing shields the precision teeth from external destruction. Exposed sprockets face constant assault from abrasive dust, which mixes with chain lubricant to form a destructive grinding paste. To combat this, exposed chain drives require frequent cleaning and specialized dry lubricants.
Material selection plays a pivotal role in environmental compliance. Standard carbon steel components rust rapidly in wet environments. For food-grade conveyors requiring FDA compliance, engineers must specify stainless steel sprockets and washdown-rated gearboxes. In highly corrosive chemical environments, specialized nylon or hardened alloy components prevent rapid degradation and ensure continuous operation.
Lubrication strategies differ drastically between the two systems. Gearboxes utilize an enclosed oil-bath lubrication method. The internal gears continuously dip into a reservoir of gear oil, ensuring constant hydrodynamic film protection. This requires minimal intervention beyond scheduled oil changes. In contrast, roller chains and exposed sprockets demand continuous external lubrication. Drip lubricators, brush applicators, or manual spraying must be maintained to prevent the chain pins from galling and the sprocket teeth from wearing prematurely.
Even the most accurately specified transmission systems fail post-installation if implemented incorrectly. Mechanical components operate within strict physical tolerances. Deviating from these tolerances during assembly guarantees a shortened operational lifecycle. Addressing the common reasons transmission systems fail post-installation prevents costly unplanned downtime.
Parallel alignment is non-negotiable for direct gear meshes. If the shafts are slightly skewed, the gear teeth will not engage evenly across their face width. This misalignment concentrates massive forces onto the edges of the teeth, leading to rapid localized wear, pitting, and eventual catastrophic tooth fracture. Laser alignment tools must be utilized during installation to ensure the shafts are perfectly parallel and the gears are spaced at the exact center distance specified by the manufacturer. Dial indicators can also verify runout on the shafts before final tightening.
Sprockets and pulleys require rigorous tensioning protocols. An under-tensioned roller chain will whip during operation and eventually jump off the sprocket teeth, potentially destroying the conveyor frame. An under-tensioned timing belt will ratchet, skipping teeth and destroying positional synchronization. Conversely, over-tensioning either system places immense radial loads on the shaft bearings, causing premature bearing failure and shaft deflection. Technicians must use proper tensioning gauges or sonic tension meters to set the exact deflection force recommended for the specific chain or belt.
Transmission components degrade over time; monitoring this degradation prevents unexpected failures. Early warning signs of component wear are visually identifiable. Sprocket tooth hooking—where the teeth wear into a sharp, curved profile—indicates severe chain elongation and necessitates immediate replacement of both the chain and the sprocket. Gear pitting, characterized by small craters on the tooth surface, signals surface fatigue from overloading or inadequate lubrication. Pulley flange wear indicates severe belt tracking issues.
Implementing predictive maintenance strategies shifts facility operations from reactive repairs to scheduled interventions. Vibration analysis sensors mounted on gearboxes detect the specific frequencies generated by failing bearings or damaged gear teeth long before human senses can detect them. Scheduled visual inspections, combined with routine thermal imaging to identify overheating drives, ensure worn components are replaced during planned maintenance windows rather than during peak production hours.
There is no universal transmission component for automated conveyor systems. Selection depends entirely on center distance, load profile, synchronization needs, and environmental constraints. Enclosed gears dominate high-torque, compact spaces. Multi-row roller chains handle heavy shock loads over extended distances. Timing pulleys provide clean, high-speed synchronization for precision sorting.
Audit your current conveyor drive systems to identify exposed components operating in highly abrasive environments, and evaluate them for enclosed gearbox upgrades.
Implement laser alignment protocols for all direct-drive gear installations to eliminate premature tooth wear and bearing failure.
Transition to split sprockets on heavy-duty chain conveyors to drastically reduce maintenance downtime during wear-part replacements.
Consult with application engineers to verify center distances and load requirements before finalizing any power transmission specifications.
A: Gears transmit power by interlocking their teeth directly with another gear. Sprockets never mesh directly together; they feature teeth designed specifically to engage with a flexible intermediate linkage, such as a roller chain, track, or belt, to transfer rotational force across longer distances.
A: Specify a spur gear for low-speed, high-torque applications where simplicity and zero axial thrust are required. Avoid them in high-speed applications, as their simultaneous tooth engagement generates significant noise and vibration compared to the smooth, gradual meshing of helical gears.
A: The gear ratio represents the number of times the motor shaft must rotate to turn the output shaft once. A higher ratio steps down the high-speed motor RPM to a slower, controlled rotational speed at the output shaft, which directly drives the conveyor belt at the required linear velocity.
A: The ratio is calculated by dividing the number of teeth on the driven sprocket by the number of teeth on the driver sprocket. Strand count is determined by the total torque requirement; multi-strand chains distribute higher loads without increasing the physical diameter of the sprockets.
A: Yes, timing pulleys paired with synchronous belts often replace roller chains in applications requiring high-speed synchronization, low noise, and zero lubrication. However, they are generally not suitable for extreme heavy-duty loads or environments with heavy abrasive debris that can damage the belt.
A: Premature wear is primarily caused by shaft misalignment, improper tensioning, lack of adequate lubrication, or operating beyond the specified load capacity. In abrasive environments, particulate contamination acts as a grinding paste, rapidly accelerating the destruction of exposed tooth profiles.
A: Yes, when properly specified and torqued to manufacturer standards, split sprockets handle the same heavy loads as solid sprockets. They are specifically engineered to maintain structural integrity under extreme tension while providing the massive advantage of rapid installation without shaft removal.
